VRF Benefits:

• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs

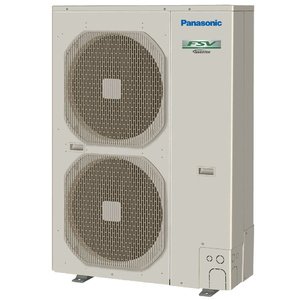

LE1 Series Features:

• Top-class EER:4.30/COP:4.62 (in the case of 12.1kW)
• Cooling operation is possible when outdoor temperature is as high as 46C DB
• Maximum number of connectable indoor units: 12.1kW:6, 14.0kW:8, 15.5kW:9
• Diversity ratio 50-130%
• DC inverter technology combined with R410A for excellent efficiency
• Actual piping length:120m (Total piping length: 150m)
• System difference of elevation: 50m/40m (outdoor above/below)
• Demand response ready (Peak cut)
• Difference in elevation between indoor units: 15m
• Cooling operation is possible when outdoor temperature as low as -10C DB
• Heating operation is possible when outdoor temperature as low as -20C WB
• Compact outdoor unit 1,330 x 940 x 340 mm
• One ampere starting current
• Full range of indoor units and control options
• Auto restart from outdoor unit

LE1 Series Energy-saving concept

• Panasonic inverter compressor
• Printed circuit board
• Accumulator
• DC Fan guard
• Newly designed fan
• Heat exchanger & copper tubes
• Oil separator

Specification

KW

14

HP

5

Power Supply

415 V-3 phase/50Hz

Capacity

*Cooling 14kW, 47,800BTU/h; *Heating 16kW, 54,600BTU/h

EER/COP

*Cooling 3.68 W/W, *Heating 3.91 W/W

Dimensions (H X W X D)

1,330 x 940 x 340(410*)mm

Net Weight

104kg

Electrical Ratings

*Cooling 5.9A, 3.8kW; *Heating 6.3A, 4.09kW

Starting Current

1A

Air Flow Rate

1,733L/s

Refrigerant Amount At Shipment

3.50kg

Piping Connection

Gas Pipe 15.88mm, Liquid Pipe 9.52mm

Ambient Temperature Operating Range

*Cooling -10CDB~+46CDB, *Heating -20CWB~+24CWB

Sound Pressure Level

Normal Mode: *Cooling 53dB(A), *Heating 55dB(A); Silent Mode: *Cooling 48dB(A), *Heating 50dB(A)

Sound Power Level

*Cooling 71dB(A), *Heating 73dB(A)
