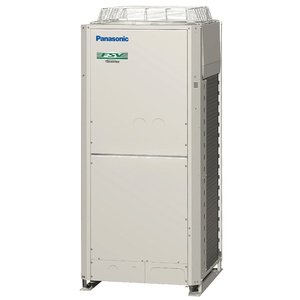

Panasonic 33.5kW VRF 2 Pipe FSV ME1 COP
U-16ME1R8
Still part of the Panasonic VRF 2 Pipe FSV ME1 system, the Super High COP Series enables even further energy savings. Wide range of systems available from 28kW to 135kW.
33.5kW VRF 2 Pipe FSV ME1 COP
VRF Benefits:
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
Super High COP Series:
• Wide range of systems from 28kW to 135kW
• High COP especially large capacity zone (107kW=COP:4.08)
• Longer max piping length (up to 1000m)
• Increased max number of connectable indoor units (up to 64)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Suitable for R22 renewal projects
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
Super High COP Series:
• Wide range of systems from 28kW to 135kW
• High COP especially large capacity zone (107kW=COP:4.08)
• Longer max piping length (up to 1000m)
• Increased max number of connectable indoor units (up to 64)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Suitable for R22 renewal projects
Specification
- KW
- 33.5
- HP
- 12
- Power Supply
- 415V 3-phase/50Hz
- Capacity
- *Cooling 33.5kW, 114,300BTU/h; *Heating 37.5kW, 128,000BTU/h
- EER/COP
- *Cooling 4.07 W/W, *Heating 4.45 W/W
- Dimensions (H X W X D)
- 1,758 x 1000 x 930mm
- Net Weight
- 309kg
- Electrical Ratings (415V)
- *Cooling 12.2A, 8.23kW; *Heating 12.5A, 8.43kW
- Starting Current (415V)
- 85A
- Air Flow Rate
- 3,533L/s
- External Static Pressure
- 80Pa
- Refrigerant Amount At Shipment
- 8.5kg
- Piping Connections
- Gas Pipe 25.40mm, Liquid Pipe 12.70mm, Balance Pipe 6.35mm
- Ambient Temperature Operating Range
- *Cooling: -10C (DB)- +46C (DB), *Heating: -25C (WB)- +20C (WB)
- Sound Pressure Level
- Normal Mode 62dB(A), Silent Mode 59dB(A)
- Sound Power Level
- 76.5dB
