VRF Benefits:

• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs

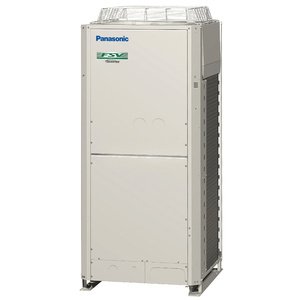

Super High COP Series:

• Wide range of systems from 28kW to 135kW
• High COP especially large capacity zone (107kW=COP:4.08)
• Longer max piping length (up to 1000m)
• Increased max number of connectable indoor units (up to 64)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Suitable for R22 renewal projects

Specification

KW

28

HP

10

Power Supply

415V 3-phase/50Hz

Capacity

*Cooling 33.5kW, 114,300BTU/h; *Heating 37.5kW, 128,000BTU/h

EER/COP

*Cooling 4.06 W/W, *Heating 4.45 W/W

Dimensions (H X W X D)

1,758 x 1000 x 930mm

Net Weight

309kg

Electrical Ratings (415V)

*Cooling 10.3A, 6.90kW; *Heating 10.5A, 7.08kW

Starting Current (415V)

80A

Air Flow Rate

3,533L/s

External Static Pressure

80Pa

Refrigerant Amount At Shipment

8.5kg

Piping Connections

Gas Pipe 22.22mm, Liquid Pipe 9.52mm, Balance Pipe 6.35mm

Ambient Temperature Operating Range

*Cooling: -10C (DB)- +46C (DB), *Heating: -25C (WB)- +20C (WB)

Sound Pressure Level

Normal Mode 62dB(A), Silent Mode 59dB(A)

Sound Power Level

76.5dB
