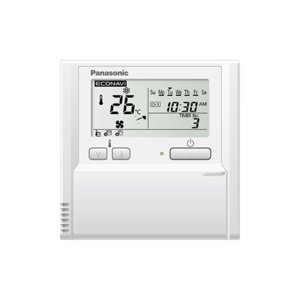

Basic remote controller ON/OFF

• Operation mode changeover (Cooling, Heating, Dry, Auto, Fan).
• Temperature setting (Cooling/Dry: 18-30 deg Heating: 16-30deg)
• Fan speed setting H/ M/ L and Auto
• Air flow direction adjustment
• ECONAVI on/off*

Time Function 24 hours real time clock

• Day of the week indicator

Weekly Programme Function

• A maximum of 6 settings/day and 42 settings/week can be programmed

Outing Function

• This function can prevent the room temperature from dropping or rising when the occupants are out for a long time

Sleeping Function

• This function controls the room temperature for comfortable sleeping

Max. 8 indoor units can be controlled from one remote controller

Remote control by main remote controller and sub controller is possible

Max. 2 remote controllers (main remote controller and sub controller) can be installed for one indoor unit.

Specification

Requirements

Normal Operation

Model Name

CZ-RTC4

Built-in Thermostat

Yes

ECONAVI On/off Control

Yes

Number Of Indoor Units Which Can Be Controlled

1 group, 8 units

Use Limitations

Up to 2 controllers can be connected per group (When using ECONAVI sensor, only one remote controller is possible to connect at indoor unit)

Function ON/OFF

Yes

Mode Setting

Yes

Fan Speed Setting

Yes

Temperature Setting

Yes

Air Flow Direction

Yes

Permit/Prohibit Switching

Yes

Weekly Program

No

Dimensions

H120 x W120 x D20 mm
