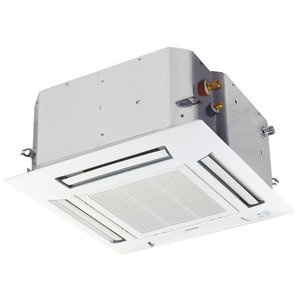

Panasonic Y1 Type, 2.2kW VRF FSV Indoor Unit
S-22MY1E5
The Y1 Type is a 4-way semi concealed Mini Cassette similar to the Y2 Type. It has a special removable flap design and a drain height of up to 850mm.
Y1 Type, 2.2kW VRF FSV Indoor Unit
Y1 Type Features:
• Special removable flap design
• Lighter and slimmer, easier installation
• A drain height of up to 850mm from the ceiling surface
• Self-diagnosing function
• Automatic fan operation
• Mild dry
• Intelligent auto flap control
• Automatic restart function for power failure
• Air swing
• Built-in drain pump
• Mini cassette fits into a 60 x 60cm ceiling grid
• Fresh air knockout
• Multi-directional air flow
• Anti-mould and anti-bacterial washable filters
• Powerful drain pump gives 850mm lift
• Turbo fans and heat exchanger fins with improved design
• DC fan motor with variable speed and a new heat exchanger ensures efficient power consumption
• Special removable flap design
• Lighter and slimmer, easier installation
• A drain height of up to 850mm from the ceiling surface
• Self-diagnosing function
• Automatic fan operation
• Mild dry
• Intelligent auto flap control
• Automatic restart function for power failure
• Air swing
• Built-in drain pump
• Mini cassette fits into a 60 x 60cm ceiling grid
• Fresh air knockout
• Multi-directional air flow
• Anti-mould and anti-bacterial washable filters
• Powerful drain pump gives 850mm lift
• Turbo fans and heat exchanger fins with improved design
• DC fan motor with variable speed and a new heat exchanger ensures efficient power consumption
Specification
- Power Source
- 240V, 1 phase - 50Hz
- Cooling Capacity
- 2.2kW, 7,500BTU/h
- Heating Capacity
- 2.5kW, 8,500BTU/h
- Power Input
- *Cooling 0.025kW, *Heating 0.015kW
- Running Amperes
- *Cooling 0.15A, *Heating 0.12A
- Fan Motor
- Type: Centrifugal fan, Air flow rate (H/M/L): 133/117/100, Motor Output: 0.030kW
- Sound Power Level (H/M/L)
- 41/38/36 dB(A)
- Sound Pressure Level (H/M/L)
- 30/27/25 dB(A)
- Dimensions (H X W X D)
- 283 x 575(625) x 575(625)
- Pipe Connections
- Liquid 6.35mm, Gas 12.7mm, Drain Piping VP-20
- Net Weight
- 16(+2.4)kg
