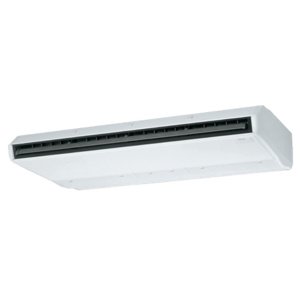

Panasonic Under Ceiling Split System Inverter Reverse Cycle 14.5Kw
S-140PT2R5 Outdoor U-140PE1R5/8
Choose a Panasonic Inverter Under-Ceiling Air Conditioner. Ideal for a business or large family home with no or limited wall space. Cools up to 150m2. Controller not included.
Under Ceiling Split System Inverter Reverse Cycle 14.5Kw
Compact Looking, Stylish Design. With its streamlined form, the unit looks thin and compact when installed for a neat appearance in any room. When not operatingm the louver closes to provide an elegant look while also keeping the unit clean.
Energy - Saving Technology Delivering Top - Classes Efficiency. Optimisation of the shape of the casing and fan provides greater air flow and higher effciency. Energy - saving performance is among the best in the industry. A DC fan motor is also used to maximise energy savings.
Comfortable, Long-Distance Air Flow Distribution. The shape of the outlet has been optimised to provide long-distace air flow distribution. Even in long rooms, air flow reaches every corner for exceptionally comfortable air conditioning.
Energy - Saving Technology Delivering Top - Classes Efficiency. Optimisation of the shape of the casing and fan provides greater air flow and higher effciency. Energy - saving performance is among the best in the industry. A DC fan motor is also used to maximise energy savings.
Comfortable, Long-Distance Air Flow Distribution. The shape of the outlet has been optimised to provide long-distace air flow distribution. Even in long rooms, air flow reaches every corner for exceptionally comfortable air conditioning.
Specification
- Operation Ranges
- Cooling/Heating -15 to 46 | -20 to 24
- Refrigerant At Shipping, Additional Gas Amount
- R410A 3,400, 50 (g/m)
- Maximum Chargeless Length
- 30 m
- Elevation Difference (OU Located Lower, OU Located Higher)
- 15, 30 m
- Pipe Length
- Min - max 5 - 75m
- Piping Connections
- Liquid/Gas 09.52/015.88 m
- Sound Power Level - Indoor (H/M/L)
- Cooling/Heating 71/71
- Sound Pressure Level Outdoor Unit (H/M/L)
- Cooling/Heating 54/55
- Air Volume - Outdoor - Cool/Heat (L/s)
- 2,2500/2,000
- Net Weight Outdoor Unit
- 98kg
- Dimensions Outdoor Unit (H X W X D)
- 1,416 x 940 x 340 mm
- Current (Outdoor Unit) (A)
- 20.5/19.2 | 19.8/18.5
- Drain Pipe Size
- VP-20 mm
- Number Of Fan Speeds
- 3
- Sound Power Level - Indoor (H/M/L)
- 65/59/55 : 65/59/55
- Sound Pressure Level - Indoor - Cooling/Heating - H / M / L (dB(A))
- 47/41/37 : 47/41/37
- Air Volume - Indoor (L/s)
- Cooling/Heating 583:583
- Net Weight Indoor Unit
- 40kg
- Dimensions Indoor Unit (H X W X D)
- 235 x 1,590 x 690 mm
- Current (Indoor Unit)
- Cooling/Heating (A) 0.91:091 | 0.88:088
- Total Power Input (kW)
- Cooling/Heating 4.65/4.36
- EER : COP (W/W)
- 3.01:3.67
- Heating Capacity
- 16.0 (4.1-18.0)
- Cooling Capacity
- 14.0 (3.3-15.0)
- Power Source
- 1 Phase/ 50Hz, 230V|240V
