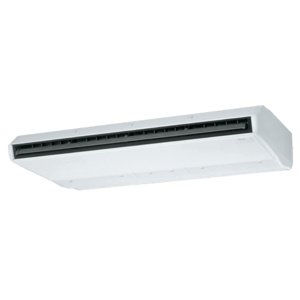

Panasonic Under Ceiling Split System Inverter Reverse Cycle 10Kw
Indoor S-100PT2R5 Outdoor U-100PE1R5/8
Choose a Panasonic Inverter Under-Ceiling Air Conditioner. Ideal for a business or large family home with no or limited wall space. Cools up to 100m2. Controller not included.
Under Ceiling Split System Inverter Reverse Cycle 10Kw
Compact Looking, Stylish Design. With its streamined form, the unit looks thin and compact when installed for a neat appearance in any room. When not operating, the louver closes to provide an elegant look while also keeping the unit clean.
Energy - Saving Technology Delivering Top-Class Efficiency. Optimisation of the shape of casing and fan provides greater air flow and higher efficiency. Energy-saving performance is among the best in the industry. A DC fan motor is also used to maimise energ savings.
Comfortabe, Long - Distance Air Flow Distrubtion. The shape of the outlet has been optimised to provide long-distance air flow distribution. Even in long rooms, air flow reaches every corner for exceptionally comfortabe air conditioning.
Energy - Saving Technology Delivering Top-Class Efficiency. Optimisation of the shape of casing and fan provides greater air flow and higher efficiency. Energy-saving performance is among the best in the industry. A DC fan motor is also used to maimise energ savings.
Comfortabe, Long - Distance Air Flow Distrubtion. The shape of the outlet has been optimised to provide long-distance air flow distribution. Even in long rooms, air flow reaches every corner for exceptionally comfortabe air conditioning.
Specification
- Operation Ranges
- Cooling/Heating -15 to 46 / -20 to 24
- Refrigerant At Shipping, Additional Gas Amount
- R410A, 2,400, 50 (g/m)
- Maximum Chargeless
- 30m
- Elevation Differenec (OU Located Lower, OU Located Higher)
- 15,30m
- Pipe Length
- Min - max 5-75m
- Piping Connections
- Liquid/Gas 9.52/015.88 m
- Sound Power Level Outdoor Unit (dB(A)
- 69/69
- Sound Pressure Level Outdoor Unit (H/M/L)
- 52/52 (dB(A)
- Air Volume - Outdoor - Cool/Heat (L/s)
- 1,833/1,583
- Net Weight Outdoor Unit
- 98kg
- Dimensions Outdoor Unit (H X W X D)
- 1,416 x 940 x 340 mm
- Current (Outdoor Unit)
- Cooling/Heating (A) 11.1 : 11.4 | 10.6 : 11.0
- Drain Pipe Size
- VP-20
- Number Of Fan Speeds
- 3
- Sound Power Level - Indoor (H/M/L)
- 60/55/53 : 60/55/53
- Sound Pressure Level - Indoor - Cooling - H / M / L (dB(A))
- 42/37/35 : 42/37/35
- Air Volume - Indoor (L/s)
- Cooling/Heating 500/500
- Net Weight Indoor Unit
- 40 kg
- Dimensions Indoor Unit (H X W X D)
- 235 x 1,590, 690 mm
- Current (Indoor Unit)
- Cooling/Heat (A) 0.67/0.67 | 0.65/0.65
- Total Power Input
- Cooling/Heating (kW) 2.53/2.60
- EER : COP
- Cooling/Heating (W/W) 3.95/4.31
- Heating Capacity (BTU/h)
- 38,200 (14,000-47,800)
- Cooling Capacity (BTU/h)
- 34,100 (11,300 - 42,700)
- Heating Capacity
- 11.2kW (4.1-14.0)
- Cooling Capacity
- 10.0kW (3.3-12.5)
- Power Source
- 1 Phase/ 50Hz | 230V, 240V
