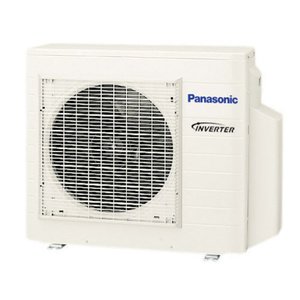

Panasonic 6.8kW Outdoor Multi Split Unit Reverse Cycle Inverter
CU-4E23QBR
Multi-Head Outdoor unit 6.8kw with a minimum of two indoor units and a maximum of four indoor units.
6.8kW Outdoor Multi Split Unit Reverse Cycle Inverter
Panasonic Flexi Multi Wall mounted air conditioners offer the utmost in versatility in meeting your cooling and heating needs. By utilizing environmentally friendly R-410a refrigerant and DC Inverter technology, the Panasonic Flexi Multi wall mounted air conditioner, automatically adjusts its performance to meet the changing needs of the space while maintaining the desired temperature. This leads to increased efficiencies, low energy consumption and a very comfortable environment.
Long - Term Durability Test: To ensure durability and stable operation for many years, we conduct a long term continuous operation test under conditions that are much more severe than actual operating conditions.
Noise Test: The operating noise of the indoor and outdoor units is measured in a high - performance anechoic chamber. These tests verify that operating noise is low enough to alow the user to talk and sleep comfortably while the product is operating.
Waterproof Test: The outdoor unit, which is subject to rain and wind, complies with IPX4 waterproof specifications. Contact sections on printed circuit boards are silicone coated to prevent adverse effects caused by exposure to water (an unlikely occurrence).
Long - Term Durability Test: To ensure durability and stable operation for many years, we conduct a long term continuous operation test under conditions that are much more severe than actual operating conditions.
Noise Test: The operating noise of the indoor and outdoor units is measured in a high - performance anechoic chamber. These tests verify that operating noise is low enough to alow the user to talk and sleep comfortably while the product is operating.
Waterproof Test: The outdoor unit, which is subject to rain and wind, complies with IPX4 waterproof specifications. Contact sections on printed circuit boards are silicone coated to prevent adverse effects caused by exposure to water (an unlikely occurrence).
Specification
- Operating Range
- * Cooling -10-46 * Heating -15-24
- Refrigerant Pipe Diameter
- * Liquid 6.35 mm * Gas Side 9.52 mm
- Maximum Pipe Length (total)
- 60m
- Pipe Length Range (1 Room)
- 3-25 m
- Power Supply
- Outdoor
- Net Weight
- 72 kg
- Dimensions (H X W X D)
- 795 x 875 (+95) x 320 mm
- Compressor Output
- 1300 W
- Starting Current
- 8.8 A
- Maximum Current
- 15.6 A
- Sound Power Level
- 63/- dB
- Sound Pressure Level
- 49/- dB(A)
- COP
- 4.36 W/W
- Power Input
- 1.95 (0.58-2.60) W
- Running Current
- 8.6 A
- Heating Operation
- Capacity 8.50 (3.00 - 10.60) kW
- Sound Power Level - Indoor
- 62/- dB
- Sound Pressure Level - Indoor
- 48/- dB(A)
- EER
- 4.05 W/W
- Power Input
- 1.68 (0.34-2.47) W
- Running Current
- 7.5 A
- Maximum Connectable Indoors
- 4 units
- Maximum Connectable Capacity
- 11.0kW
- Cooling Capacity
- 6.80 (1.90-8.80) kW
- Power Source
- Single Phase 240V, 50Hz
- Indoor Units Combination
- 1.6kW + 1.6kW + 1.6kW + 2.0kW
