Panasonic U1 Type, 2.2kW VRF FSV Indoor Unit
S-22MU1E51

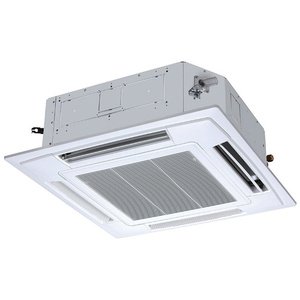

The U1 Type is a 4-way semi concealed Cassette that has been made smaller and slimmer than the previous model. Comes with a standard 950 x 950mm panel for the entire product range.
U1 Type, 2.2kW VRF FSV Indoor Unit
U1 Type Features:
• Higher efficiency split fin
• New DC-Fan motor
• High efficiency and quiet turbo fan
• Individual flap control
• Compact design
• Self-diagnosing function
• Automatic fan operation
• Mild dry
• Intelligent auto flap control
• Automatic restart function for power failure
• Air swing
• Built-in drain pump
• Reduced sound levels (from previous models)
• DC fan motor for increased efficiency
• Powerful drain pump gives 850mm lift
• Lightweight design
• Fresh air knockout
• Branch duct connection
• Optional air-intake plenum CZ-FDU2
• Lighter and slimmer, easier installation
• Drain pump of up to 850mm from the ceiling surface
• Easy fine adjustment of the body suspension height
• Easy to clean suction grille & flap
• Air flow directed to avoid ceiling marks
• High-ceiling installation (Up to 5m for 10.6kW and higher capacity models)
• Higher efficiency split fin
• New DC-Fan motor
• High efficiency and quiet turbo fan
• Individual flap control
• Compact design
• Self-diagnosing function
• Automatic fan operation
• Mild dry
• Intelligent auto flap control
• Automatic restart function for power failure
• Air swing
• Built-in drain pump
• Reduced sound levels (from previous models)
• DC fan motor for increased efficiency
• Powerful drain pump gives 850mm lift
• Lightweight design
• Fresh air knockout
• Branch duct connection
• Optional air-intake plenum CZ-FDU2
• Lighter and slimmer, easier installation
• Drain pump of up to 850mm from the ceiling surface
• Easy fine adjustment of the body suspension height
• Easy to clean suction grille & flap
• Air flow directed to avoid ceiling marks
• High-ceiling installation (Up to 5m for 10.6kW and higher capacity models)
Specification
- Power Source
- 240 V, 1 phase -50Hz
- Cooling Capacity
- 2.2kW, 7500BTU/h
- Heating Capacity
- 2.5kW, 8500BTU/h
- Power Input
- *Cooling 0.020kW, *Heating 0.020kW
- Running Current
- *Cooling 0.18A, *Heating 0.16A
- Fan
- Type: turbo fan, Air flow rate (H/M/L): 233/200/183, Motor Output: 0.06kW
- Sound Power Level (H/M/L)
- 47/46/45dB
- Sound Pressure Level (H/M/L)
- 30/29/28 dB(A)
- Dimensions (H X W X D)
- 256+(33.5) x 840(950) x 840(950)
- Pipe Connections
- Liquid 6.35mm, Gas 12.7mm, Drain Piping VP-25
- Net Weight (Panel)
- 23(+4)kg
