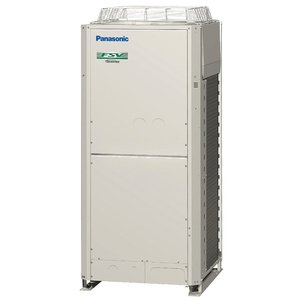

Panasonic 22.4kW VRF 2 Pipe FSV ME1
U-8ME1R8
Panasonic’s VRF 2 Pipe FSV ME1 system is the newly designed next generation VRF. It is a large capacity and high efficiency system and offers a wide range from 22.4kW to 168kW.
22.4kW VRF 2 Pipe FSV ME1
VRF Benefits:
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
ME1 Series Features:
• Compact outdoor units
• Bigger capacity in one outdoor unit (Max 56kW)
• Wider range of systems (Max 168kW)
• Long max piping length up to 1000m
• Increased connectable capacity ratio up to 200%
• Demand response ready (AS4755 Compliant)
• Up to 64 Indoor units connectable
• High outdoor unit static pressure up to 80 Pa
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Cooling is possible as high as 46C DB
• Suitable for R22 renewal projects (Refer to Page 94)
• Super High COP mode available by dip switch setting
• Hi-durable model is available
ME1 Series Energy-saving concept
• Panasonic inverter compressor
• Constant-speed compressor
• Accumulator
• Fan guard
• Newly designed high performance fan
• Heat exchanger copper tubes, heat exchanger fins
• Sub-cooling circuit
• Oil separator
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
ME1 Series Features:
• Compact outdoor units
• Bigger capacity in one outdoor unit (Max 56kW)
• Wider range of systems (Max 168kW)
• Long max piping length up to 1000m
• Increased connectable capacity ratio up to 200%
• Demand response ready (AS4755 Compliant)
• Up to 64 Indoor units connectable
• High outdoor unit static pressure up to 80 Pa
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Cooling is possible as high as 46C DB
• Suitable for R22 renewal projects (Refer to Page 94)
• Super High COP mode available by dip switch setting
• Hi-durable model is available
ME1 Series Energy-saving concept
• Panasonic inverter compressor
• Constant-speed compressor
• Accumulator
• Fan guard
• Newly designed high performance fan
• Heat exchanger copper tubes, heat exchanger fins
• Sub-cooling circuit
• Oil separator
Specification
- KW
- 22.4
- HP
- 8
- Power Supply
- 415V 3-phase/50Hz
- Capacity
- *Cooling 22.4kW, 76,500BTU/h; *Heating 25kW, 85,300BTU/h
- EER/COP
- *Cooling 4.04 W/W, *Heating 4.56 W/W
- Dimensions (H X W X D)
- 1,758 x 770 x 930mm
- Net Weight
- 234kg
- Electrical Ratings (415V)
- *Cooling 8.2A, 5.54kW; *Heating 8.1A, 5.48kW
- Starting Current (415V)
- 1A
- Air Flow Rate
- 2,450L/s
- Refrigerant Amount At Shipment
- 6.5kg
- External Static Pressure
- 80Pa
- Piping Connections
- Gas Pipe 19.05mm, Liquid Pipe 9.52mm, Balance Pipe 6.35mm
- Ambient Temperature Operating Range
- *Cooling: -10C (DB)- +46C (DB), *Heating: -25C (WB)- +20C (WB)
- Sound Pressure Level
- Normal Mode 56.5dB(A), Silent Mode 53.5dB(A)
- Sound Power Level
- 71dB
