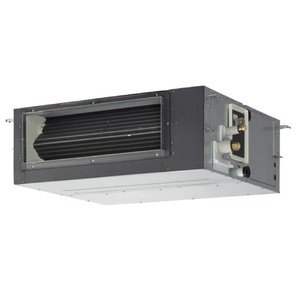

Panasonic Ducted Reverse Cycle Inverter 6kW (Mid-Static)
Indoor S-60PF1R5A Outdoor U-60PE1R5A
Complete Panasonic Ducted System Indoor and Outdoor Unit. Designed for small roof cavities with a low profile feature.
Ducted Reverse Cycle Inverter 6kW (Mid-Static)
Panasonic Ducted Air Conditioner 14.5Kw Inverter Reverse Cycle Split System
The use of energy-saving designs for the structure of fans, fan motors, compressors and heat exchangers results in high COP values which rank amongst the highest in the industry. In addition, use of highly efficient R410A refrigerant reduces CO2 emission and lowers operating costs.
All Panasonic air conditioners undergo strict quality and safety tests before sale. This rigorous process includes obtaining all necessary Safety Approvals to ensure that all air conditioners we sell are not only built to the highest market standards, but are also completely safe.
7 New Improvements !
1.A large-capacity inverter compressor has been adopted. The inverter compressor is superior in
performance with improved partial-load capacity.
2.The number of PCB were reduced from 3 into two pieces making maintenance work easier.
3.Checking load and outside temperature, the DC motor is controlled for optimum air volume.
4.The newly designed fan has been developed to inhibit air turbulence and to increase efficiency.
5.As the fan diameter has been increased to 520mm, the air volume has been increased whils maintaining a low sound level.
6.The heat exchanger and the size of the copper
tubes heat exchanger have been redesigned to increase efficiency.
7.The operation efficiency has been improved using highly efficient R410A refrigerant, a new DC inverter compressor, a new DC motor and a newly designed heat exchanger.
Panasonic air conditioners are equipped with Demand Response Capability which complies to both AS
755 and AS 3823. Panasonic continues to design and develop products that are tailored to local needs and requirements. This ensures that Panasonic products that you are installing today are compliant with the demand response standards that are likely to be implemented shortly (estimate: 2012). The Equipment Energy Efficiency (E3) program has been supporting the development of Demand
Response Enabling Device (DRED) standards for air-conditioners which should comply with AS 4755. DRED functionality is not compulsory today, however, this capability will be required for all
installations in the very near future.
Complies with all necessary Safety Approvals to ensure quality and safety
Top-class EER:4.20 / COP:4.31 (Cassette type:10.0kW)
Compiled Demand Response (DRED Compatible)
Cooling operation is possible when outdoor temperature is as high as 46°C
DC inverter technology combined with R410A for excellent efficiency
Maximum piping length:75m (Total piping length:75m)
Cooling operation is possible when outdoor temperature is as low as -15°C
Heating operation is possible when outdoor temperature is as low as -20°C
One ampere starting current
Auto restart from outdoor unit DC Inverter allows both comfort and energy savings
The use of energy-saving designs for the structure of fans, fan motors, compressors and heat exchangers results in high COP values which rank amongst the highest in the industry. In addition, use of highly efficient R410A refrigerant reduces CO2 emission and lowers operating costs.
All Panasonic air conditioners undergo strict quality and safety tests before sale. This rigorous process includes obtaining all necessary Safety Approvals to ensure that all air conditioners we sell are not only built to the highest market standards, but are also completely safe.
7 New Improvements !
1.A large-capacity inverter compressor has been adopted. The inverter compressor is superior in
performance with improved partial-load capacity.
2.The number of PCB were reduced from 3 into two pieces making maintenance work easier.
3.Checking load and outside temperature, the DC motor is controlled for optimum air volume.
4.The newly designed fan has been developed to inhibit air turbulence and to increase efficiency.
5.As the fan diameter has been increased to 520mm, the air volume has been increased whils maintaining a low sound level.
6.The heat exchanger and the size of the copper
tubes heat exchanger have been redesigned to increase efficiency.
7.The operation efficiency has been improved using highly efficient R410A refrigerant, a new DC inverter compressor, a new DC motor and a newly designed heat exchanger.
Panasonic air conditioners are equipped with Demand Response Capability which complies to both AS
755 and AS 3823. Panasonic continues to design and develop products that are tailored to local needs and requirements. This ensures that Panasonic products that you are installing today are compliant with the demand response standards that are likely to be implemented shortly (estimate: 2012). The Equipment Energy Efficiency (E3) program has been supporting the development of Demand
Response Enabling Device (DRED) standards for air-conditioners which should comply with AS 4755. DRED functionality is not compulsory today, however, this capability will be required for all
installations in the very near future.
Complies with all necessary Safety Approvals to ensure quality and safety
Top-class EER:4.20 / COP:4.31 (Cassette type:10.0kW)
Compiled Demand Response (DRED Compatible)
Cooling operation is possible when outdoor temperature is as high as 46°C
DC inverter technology combined with R410A for excellent efficiency
Maximum piping length:75m (Total piping length:75m)
Cooling operation is possible when outdoor temperature is as low as -15°C
Heating operation is possible when outdoor temperature is as low as -20°C
One ampere starting current
Auto restart from outdoor unit DC Inverter allows both comfort and energy savings
Specification
- Indoor Unit
- S-60PF1R5A
- Outdoor Unit
- S-60PE1R5A
- Peak Smart
- Yes
- Inverter/Reverse Cycle
- Yes
- Capacity
- *Cooling 6kW, *Heating 7kW
- Capacity
- 350 L/sec
