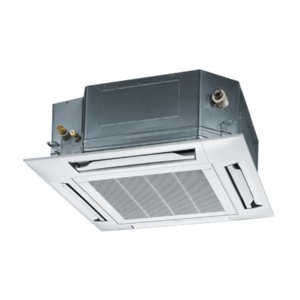

Panasonic Cassette Split System Reverse Cycle Inverter 14.0Kw-3P
Indoor S-140PU1R5 Outdoor U140PE1R8-3P
Provides a neat fit in the Ceiling, flush with only a 30mm drop. The unit is perfect for a large area with a 360 degree air flow. Ideal for Cooling and Heating 145m2. Controller Not Included.
Cassette Split System Reverse Cycle Inverter 14.0Kw-3P
Choose a Panasonic Inverter Cassette Air Conditioner to stay cool during summer and warm during winter. Now featuring the ultimate in energy-saving technologies.
Panasonic inverter technology delivers substantial energy savings, to benefit the environment and your power bill. The inverter allows up to 50 per cent energy savings during cooling operation and 64 per cent energy savings during heating. This revolutionary technology provides a more even room temperature as it does not need to be constantly turned on and off. This means that the desired room temperature you set on the remote control will be maintained at all times, providing constant comfort all year round.
Precise power control
The intelligent inverter feature provides the exact amount of power required to rapidly cool or heat your room, from the moment it is switched on. This enables your room to heat 4 times faster or cool 1.5 times faster than a non-inverter model.
So easy to use, install and maintain
Convenience is assured with a weekly On/Off timer (6 settings per day and 42 per week) wired remote control. Installation is also simple, thanks to a 750 mm drain-up mechanism and long pipe distances, making large differences in elevation possible between the indoor and outdoor units. All units even feature bottom-easy maintenance access, allowing cleaning to be carried out very easily.
Panasonic inverter technology delivers substantial energy savings, to benefit the environment and your power bill. The inverter allows up to 50 per cent energy savings during cooling operation and 64 per cent energy savings during heating. This revolutionary technology provides a more even room temperature as it does not need to be constantly turned on and off. This means that the desired room temperature you set on the remote control will be maintained at all times, providing constant comfort all year round.
Precise power control
The intelligent inverter feature provides the exact amount of power required to rapidly cool or heat your room, from the moment it is switched on. This enables your room to heat 4 times faster or cool 1.5 times faster than a non-inverter model.
So easy to use, install and maintain
Convenience is assured with a weekly On/Off timer (6 settings per day and 42 per week) wired remote control. Installation is also simple, thanks to a 750 mm drain-up mechanism and long pipe distances, making large differences in elevation possible between the indoor and outdoor units. All units even feature bottom-easy maintenance access, allowing cleaning to be carried out very easily.
Specification
- Built In Drain Pump
- Yes
- Programmable Timer
- Yes
- Remote Control
- Wired / Wireless Optional
- No. Of Fan Speeds
- 3
- Air Filtration System
- Yes
- Warranty
- 5 Years Manufacturer's Warranty
- Colour(s)
- White
- Elevation Difference With Outdoor Higher
- 30m
- Maximum Pipe Length
- 75m
- Sound Power Level - Outdoor - Heating (Silent Mode) (dB(A))
- 71 (69)
- Sound Power Level - Outdoor - Cooling (Silent Mode) (dB(A))
- 71 (69)
- Sound Pressure Level - Outdoor - Heating (Silent Mode) (dB(A))
- 55 (53)
- Sound Pressure Level - Outdoor - Cooling (Silent Mode) (dB(A))
- 54 (52)
- Sound Power Level - Indoor - Heating - H / M / L (dB(A))
- 64 / 57 / 51
- Sound Power Level - Indoor - Cooling - H / M / L (dB(A))
- 64 / 57 / 51
- Sound Pressure Level - Indoor - Heating- H / M / L (dB(A))
- 46 / 40 / 34
- Sound Pressure Level - Indoor - Cooling - H / M / L (dB(A))
- 46/40/34
- Air Volume - Outdoor - Cool/Heat (L/s)
- 2250/2000
- Air Volume - Indoor - Cool/Heat (L/s)
- 600/600
- Weight - Outdoor Unit
- 98kg
- Weight - Fascia Panel
- 4kg
- Weight - Indoor Unit
- 27kg
- Facia Dimensions W X H X D
- 950 x 33.5 x 950 (mm)
- Outdoor Unit Dimensions W X H X D
- 940 x 1416 x 340
- Indoor Unit Dimensions W X H X D
- 840 x 319 x 840 (mm)
- No. Of Indoor Units
- 1
- Refrigerant Type
- R410A
- Compressor Type
- Inverter
- Heating Operating Temperature Range
- -20-24*C
- Cooling Operating Temperature Range
- -15-46*C
- COP (w/w)
- 3.7
- EER (w/w)
- 3.25
- Heating Capacity Range Min - Max
- 4.1-18.0kW
- Heating Capacity
- 16kW
- Cooling Capacity Range Min - Max
- 3.3 - 15.5kW
- Cooling Capacity
- 14kW
- Phase
- 1
- Electrical Voltage (V)
- 240
- Function
- Cooling + Heating
- Inverter Equipped
- Yes
- Type Of Split System Air Conditioner
- Cassette
