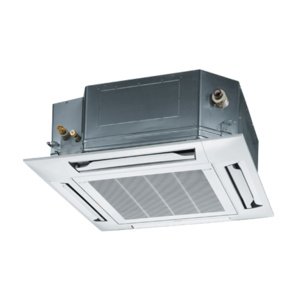

Panasonic Cassette Split System Reverse Cycle Inverter 12.5Kw
Indoor S-125PU1R5 Outdoor U-125PE1R5
Provides a neat fit in the Ceiling, flush with only a 30mm drop. The unit is perfect for a large area with a 360 degree air flow. Ideal for Cooling and Heating 120m2. Controller not included.
Cassette Split System Reverse Cycle Inverter 12.5Kw
Choose a Panasonic Inverter Cassette Air Conditioner to stay cool during summer and warm during winter. Now featuring the ultimate in energy-saving technologies.
Panasonic inverter technology delivers substantial energy savings, to benefit the environment and your power bill. The inverter allows up to 50 per cent energy savings during cooling operation and 64 per cent energy savings during heating. This revolutionary technology provides a more even room temperature as it does not need to be constantly turned on and off. This means that the desired room temperature you set on the remote control will be maintained at all times, providing constant comfort all year round.
Precise power control
The intelligent inverter feature provides the exact amount of power required to rapidly cool or heat your room, from the moment it is switched on. This enables your room to heat 4 times faster or cool 1.5 times faster than a non-inverter model.
So easy to use, install and maintain
Convenience is assured with a weekly On/Off timer (6 settings per day and 42 per week) wired remote control. Installation is also simple, thanks to a 750 mm drain-up mechanism and long pipe distances, making large differences in elevation possible between the indoor and outdoor units. All units even feature bottom-easy maintenance access, allowing cleaning to be carried out very easily.
Panasonic inverter technology delivers substantial energy savings, to benefit the environment and your power bill. The inverter allows up to 50 per cent energy savings during cooling operation and 64 per cent energy savings during heating. This revolutionary technology provides a more even room temperature as it does not need to be constantly turned on and off. This means that the desired room temperature you set on the remote control will be maintained at all times, providing constant comfort all year round.
Precise power control
The intelligent inverter feature provides the exact amount of power required to rapidly cool or heat your room, from the moment it is switched on. This enables your room to heat 4 times faster or cool 1.5 times faster than a non-inverter model.
So easy to use, install and maintain
Convenience is assured with a weekly On/Off timer (6 settings per day and 42 per week) wired remote control. Installation is also simple, thanks to a 750 mm drain-up mechanism and long pipe distances, making large differences in elevation possible between the indoor and outdoor units. All units even feature bottom-easy maintenance access, allowing cleaning to be carried out very easily.
Specification
- Outdoor Unit Operation Ranges
- Cooling (C): -15 - 46 Heating (C): -20 - 24
- Outdoor Unit
- Refrigerant at shipping, Additional gas amount (g): R410A 3,400, 50 (g/m)
- Outdoor Unit
- Maximum chargeless length (m): 30
- Outdoor Unit
- Elevation difference (OU located lower, OU located higher): 15m, 30m
- Outdoor Unit
- Pipe length (min-max): 5m - 75m
- Outdoor Unit Piping Connections
- Liquid (mm):09.52 Gas (mm): 015.88
- Outdoor Unit Sound Power Level (Silent Mode)
- Cooling:(dB(A)): 70(68) Heating:(dB(A)): 70(68)
- Outdoor Unit Sound Pressure Level (Silent Mode)
- Cooling(dB(A)): 53(51) Heating(dB(A)): 53(51)
- Outdoor Unit Air Volume
- Cooling (L/s): 2166 Heating (L/s): 1833
- Outdoor Unit
- Net Weight (kg): 98
- Outdoor Unit Dimensions
- Outdoor (mm): H:1416 W:940 D:340
- Outdoor Unit Current
- Cooling (A): 15.3 Heating (A): 15.4
- Indoor Unit
- Drain pipe size (mm): VP-25
- Indoor Unit
- Number of fan speeds: 3
- Indoor Unit Sound Power
- Heating (dB(A)): H:63 M:56 L:50
- Indoor Unit Sound Power
- Cooling (dB(A)): H:63 M:56 L:50
- Indoor Unit Sound Pressure
- Heating (dB(A)): H:45 M:39 L:33
- Indoor Unit Sound Pressure
- Cooling (dB(A)): H:45 M:39 L:33
- Indoor Unit Air Volume
- Cooling (L/s): 583 Heating (L/s): 583
- Indoor Unit Net Weight
- Panel (kg): 4
- Indoor Unit Net Weight
- Indoor (kg): 27
- Indoor Unit Dimensions
- Panel (mm): H:33.5 W: 950 D: 950
- Indoor Unit Dimensions
- Indoor (mm): H: 319 W:840 D: 840
- Indoor Unit Current
- Cooling (A): 0.76 Heating (A): 0.73
- Total Power Input
- Cooling (kW): 3.47 Heating (kW): 3.50
- EER: COP
- Cooling (W/W): 3.60 Heating (W/W): 4:00
- Heating Capacity
- KW: 14.0 (4.1kw - 16.0kw) BTU/h: 47,800 (14,000 - 54,600)
- Cooling Capacity
- KW: 12.5(3.3kw -14.0kw) BTU/h: 42,700 (11,300 - 47,800)
- Power Source
- Phase/Hz: 1 phase, 50Hz V: 230V/240V
- Model Name
- Indoor unit: S-125PU1R5 Outdoor unit: U - 125PE1R5 Panel: CZ-KPU21
