VRF Benefits:

• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs

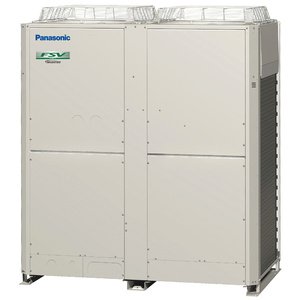

Super High COP Series:

• Wide range of systems from 28kW to 135kW
• High COP especially large capacity zone (107kW=COP:4.08)
• Longer max piping length (up to 1000m)
• Increased max number of connectable indoor units (up to 64)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Suitable for R22 renewal projects

Specification

KW

56

HP

20

Power Supply

415V 3-phase/50Hz

Capacity

*Cooling 46kW, 191,100BTU/h; *Heating 63kW, 215,000BTU/h

EER/COP

*Cooling 4.06 W/W, *Heating 4.50 W/W

Dimensions (H X W X D)

1,758 x 1,830 x 930mm

Net Weight

543kg

Electrical Ratings (415V)

*Cooling 20.5A, 13.8kW; *Heating 20.8A, 14kW

Starting Current (415V)

93A

Air Flow Rate

5,983L/s

External Static Pressure

80Pa

Refrigerant Amount At Shipment

15kg

Piping Connections

Gas Pipe 28.58mm, Liquid Pipe 15.88mm, Balance Pipe 6.35mm

Ambient Temperature Operating Range

*Cooling: -10C (DB)- +43C (DB), *Heating: -25C (WB)- +20C (WB)

Sound Pressure Level

Normal Mode 63dB(A), Silent Mode 60dB(A)

Sound Power Level

77.5dB
