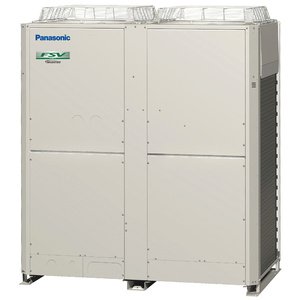

Panasonic 50kW VRF 2 Pipe FSV ME1 COP
U-14ME1R8 + U-8ME1R8
Still part of the Panasonic VRF 2 Pipe FSV ME1 system, the Super High COP Series enables even further energy savings. Wide range of systems available from 28kW to 135kW.
50kW VRF 2 Pipe FSV ME1 COP
VRF Benefits:
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
Super High COP Series:
• Wide range of systems from 28kW to 135kW
• High COP especially large capacity zone (107kW=COP:4.08)
• Longer max piping length (up to 1000m)
• Increased max number of connectable indoor units (up to 64)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Suitable for R22 renewal projects
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
Super High COP Series:
• Wide range of systems from 28kW to 135kW
• High COP especially large capacity zone (107kW=COP:4.08)
• Longer max piping length (up to 1000m)
• Increased max number of connectable indoor units (up to 64)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Suitable for R22 renewal projects
Specification
- KW
- 50
- HP
- 18
- Power Supply
- 415V 3-phase/50Hz
- Capacity
- *Cooling 50kW, 170,600BTU/h; *Heating 56kW, 191,100BTU/h
- EER/COP
- *Cooling 4.07 W/W, *Heating 4.52 W/W
- Dimensions (H X W X D)
- 1,758 x 1,830 x 930mm
- Net Weight
- 543kg
- Electrical Ratings (415V)
- *Cooling 18.2A, 12.3kW; *Heating 18.4A, 12.4kW
- Starting Current (415V)
- 88A
- Air Flow Rate
- 5,983L/s
- External Static Pressure
- 80Pa
- Refrigerant Amount At Shipment
- 15kg
- Piping Connections
- Gas Pipe 28.58mm, Liquid Pipe 15.88mm, Balance Pipe 6.35mm
- Ambient Temperature Operating Range
- *Cooling: -10C (DB)- +43C (DB), *Heating: -25C (WB)- +20C (WB)
- Sound Pressure Level
- Normal Mode 63dB(A), Silent Mode 60dB(A)
- Sound Power Level
- 77.5dB
