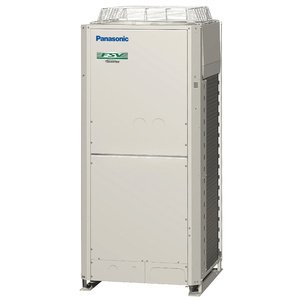

Panasonic 40kW VRF 3 Pipe FSV MF2
U-14MF2R8
Panasonic’s 3 Pipe FSV MF2 Series enables simultaneous heating and cooling operation. Perfect for commercial applications, it is available in a wide range from 22.4kW to 118kW.
40kW VRF 3 Pipe FSV MF2
VRF Benefits:
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
MF2 Series Features:
• Wide range of systems from 22.4kW to 118kW
• Top class EER: 4.50/COP:4.77 (in the case of 22.4kW)
• Longer max piping length (up to 500m)
• Increased max number of connectable indoor units (up to 52)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -20C WB
• Suitable for R22 renewal projects
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
MF2 Series Features:
• Wide range of systems from 22.4kW to 118kW
• Top class EER: 4.50/COP:4.77 (in the case of 22.4kW)
• Longer max piping length (up to 500m)
• Increased max number of connectable indoor units (up to 52)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -20C WB
• Suitable for R22 renewal projects
Specification
- KW
- 40
- HP
- 14
- Power Supply
- 415 V-3 phase/50Hz
- Capacity
- *Cooling 40kW, 136,500BTU/h; *Heating 45kW, 153,600BTU/h
- EER/COP
- *Cooling 4.45 W/W, *Heating 4.41 W/W
- Dimensions (H X W X D)
- 1,758 x 1,000 x 930mm
- Net Weight
- 322kg
- Electrical Ratings
- *Cooling 19.2/18.4/17.9A, 11.6kW; *Heating 17/16.4/15.9A, 10.2kW
- Air Flow Rate
- 3,533L/s
- Refrigerant Amount At Shipment
- 9.3kg
- Piping Connection
- Suction Pipe 25.40mm, Discharge Pipe 22.22mm, Liquid Pipe 12.70mm, Balance Pipe 6.35mm
- Ambient Temperature Operating Range
- *Cooling/Dry -10C~+46C(DB), *Heating -20C~+18C(WB), *Simultaneous Operation -10C~+24C (DB)
- Sound Pressure Level
- Normal Mode 62dB(A), Silent Mode 59dB(A)
