VRF Benefits:

• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs

Super High COP Series:

• Wide range of systems from 28kW to 135kW
• High COP especially large capacity zone (107kW=COP:4.08)
• Longer max piping length (up to 1000m)
• Increased max number of connectable indoor units (up to 64)
• Cooling operation is possible when outdoor temperature as high as 46C DB
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Suitable for R22 renewal projects

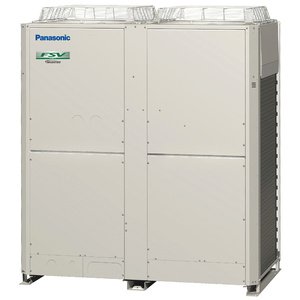

Specification

KW

40.0

HP

14

Power Supply

415V 3-phase/50Hz

Capacity

*Cooling 40.0kW, 136,500BTU/h; *Heating 45kW, 153,600BTU/h

EER/COP

*Cooling 4.01 W/W, *Heating 4.41 W/W

Dimensions (H X W X D)

1,758 x 1,540 x 930mm

Net Weight

421kg

Electrical Ratings (415V)

*Cooling 14.9A, 9.98kW; *Heating 15.2A, 10.2kW

Starting Current (415V)

95A

Air Flow Rate

4,067L/s

External Static Pressure

80Pa

Refrigerant Amount At Shipment

9.0kg

Piping Connections

Gas Pipe 25.40mm, Liquid Pipe 12.70mm, Balance Pipe 6.35mm

Ambient Temperature Operating Range

*Cooling: -10C (DB)- +43C (DB), *Heating: -25C (WB)- +20C (WB)

Sound Pressure Level

Normal Mode 60dB(A), Silent Mode 57dB(A)

Sound Power Level

74.5dB
