Panasonic 3.7kW Ultra Slim Buklhead Ducted Inverter Reverse Cycle Air Conditioner

Panasonic Indoor CS-E12SD3RW Outdoor CU-E12SD3R

Bulkhead Panasonic Air Conditioning, used for a hidden appearance in air conditioning a room.

3.7kW Ultra Slim Buklhead Ducted Inverter Reverse Cycle Air Conditioner

The Secret to its Ability is Flexibility
Many air conditioners operate at one constant speed and need to constantly turn on and off to maintain a set temperature. Panasonic Inverter air conditioners have the flexibility to vary the rotation speed of the compressor, allowing them to use less energy to maintain the set temperature while also being able to cool and heat the room quicker at start up.

Quiet Operation
Panasonic systems are amongst the quietest in the world, so you can enjoy the comfort of running your air conditioner at night and still have a relaxing sleep. The outdoor unit is also very quiet which means you don’t have to worry about keeping your neighbours up either.

Built Tough
Panasonic outdoor units are built to last in the harsh Australian environment. To ensure you will enjoy many years of reliable comfort from your air conditioner the internal components of the outdoor unit are coated with a special coating that protects the unit from the damaging effects of salty air, dust, wind and rain.

Designed for Australian Conditions
Our ducted systems boast an outstanding operating temperature range. Cooling operation is possible even when it is a scorching 46ºC outside, which is perfect for Australia’s hot summer days and the heating operation is designed to operate even when it’s a freezing -15°C outside, so even the coldest parts of Australia are covered.

Count On Panasonic
Our fans are manufactured to the highest quality standards to ensure years of reliable comfort.
We even back our reliability by offering a full 5 years parts and labour warranty.

A Better Life, A Better World
Panasonic is committed to creating a better life and a better world, continuously contributing to the evolution of society and to the happiness of people around the globe. A global leader in air conditioning solutions with five decades of experience in the industry, our products are sold every day in over 120 countries around the world. We believe that the true value in air conditioning comes from extensive testing in reliability and uninterrupted operations that you can count on for years to come. Nothing compares to knowing that temperature-controlled comfort is always there to make you feel right at home.

Specs
- 3.7kW cooling, 4.2kW heating
- Only 200mm high
- Built-in drain pump

Specification

Outdoor GTIN
5025232856916
Indoor GTIN
5025232856886
General
Type Of Split System Air Conditioner
Inverter Ultra Slim Ducted
Indoor Unit
CS-E12SD3RW
Outdoor Unit
CU-E12SD3R
Inverter Equipped
Yes
Function
Cooling & Heating
Performance
Electrical Voltage (V)
240
Phase
1
Heating Capacity (kW)
4.2
Heating Capacity Range - Min ~ Max (kW)
0.85 ~ 5.10
EER (w/w)
3.59
COP (w/w)
3.82
Total Power Input - Cooling / Heating (kW)
1.03 / 1.10
Cooling Operating Temperature Range (¢ªC)
5 ~ 46
Heating Operating Temperature Range (¢ªC)
-15 ~ 24
Compressor Type
Inverter
Refrigerant Type
R410A
Specifications
No. Of Indoor Units
1

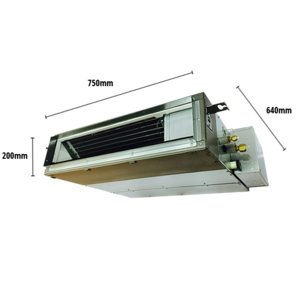

Indoor Unit Dimensions W X H X D (mm)
750 x 200 x 640
Outdoor Unit Dimensions W X H X D (mm)
824 x 619 x 299
Net Weight - Indoor Unit (kg)
19
Net Weight - Outdoor Unit (kg)
33
Indoor Airflow (max @ 10Pa) - Cooling (L/s)
241
Indoor Airflow (max @ 10Pa) - Heating (L/s)
241
Adjustable Static Pressure (Pa)
0¬84
Sound Pressure Level - Indoor - Cooling- H / M / L (dB(A))
33/27/24
Sound Pressure Level - Indoor - Heating- H / M / L (dB(A))
35/28/25
Sound Pressure Level - Outdoor - Cooling / Heating (dB(A))
49/50
Sound Power Level - Outdoor - Cooling / Heating (dB(A))
64/65
Pipe Length - Min. ~ Max. (m)
3¬15
Maximum Chargeless Length (m)
7.5
Additional Gas Amount (g/m)
20
Piping Connections - Liquid / Gas (mm)
Ø6.35 / Ø12.70
Drain Pipe Size (mm)
VP-20
Warranty
5 Years Manufacturer's Warranty
Features
Remote Control
Wired
Programmable Timer
Yes
