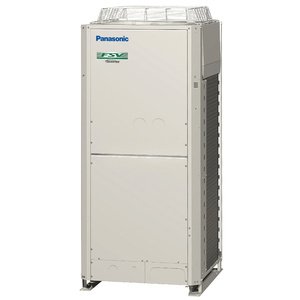

Panasonic 33.5kW VRF 2 Pipe FSV ME1
U-12ME1R8
Panasonic’s VRF 2 Pipe FSV ME1 system is the newly designed next generation VRF. It is a large capacity and high efficiency system and offers a wide range from 22.4kW to 168kW.
33.5kW VRF 2 Pipe FSV ME1
VRF Benefits:
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
ME1 Series Features:
• Compact outdoor units
• Bigger capacity in one outdoor unit (Max 56kW)
• Wider range of systems (Max 168kW)
• Long max piping length up to 1000m
• Increased connectable capacity ratio up to 200%
• Demand response ready (AS4755 Compliant)
• Up to 64 Indoor units connectable
• High outdoor unit static pressure up to 80 Pa
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Cooling is possible as high as 46C DB
• Suitable for R22 renewal projects (Refer to Page 94)
• Super High COP mode available by dip switch setting
• Hi-durable model is available
ME1 Series Energy-saving concept
• Panasonic inverter compressor
• Constant-speed compressor
• Accumulator
• Fan guard
• Newly designed high performance fan
• Heat exchanger copper tubes, heat exchanger fins
• Sub-cooling circuit
• Oil separator
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
ME1 Series Features:
• Compact outdoor units
• Bigger capacity in one outdoor unit (Max 56kW)
• Wider range of systems (Max 168kW)
• Long max piping length up to 1000m
• Increased connectable capacity ratio up to 200%
• Demand response ready (AS4755 Compliant)
• Up to 64 Indoor units connectable
• High outdoor unit static pressure up to 80 Pa
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Cooling is possible as high as 46C DB
• Suitable for R22 renewal projects (Refer to Page 94)
• Super High COP mode available by dip switch setting
• Hi-durable model is available
ME1 Series Energy-saving concept
• Panasonic inverter compressor
• Constant-speed compressor
• Accumulator
• Fan guard
• Newly designed high performance fan
• Heat exchanger copper tubes, heat exchanger fins
• Sub-cooling circuit
• Oil separator
Specification
- KW
- 33.5
- HP
- 12
- Power Supply
- 415V 3-phase/50Hz
- Capacity
- *Cooling 33.5kW, 114,300BTU/h; *Heating 37.5kW, 128,000BTU/h
- EER/COP
- *Cooling 3.61 W/W, *Heating 4.10 W/W
- Dimensions (H X W X D)
- 1,758 x 770 x 930mm
- Net Weight
- 281kg
- Electrical Ratings (415V)
- *Cooling 14.1A, 9.29kW; *Heating 13.9A, 9.15kW
- Starting Current (415V)
- 85A
- Air Flow Rate
- 3,167L/s
- Refrigerant Amount At Shipment
- 6.8kg
- External Static Pressure
- 80Pa
- Piping Connections
- Gas Pipe 25.4mm, Liquid Pipe 12.7mm, Balance Pipe 6.35mm
- Ambient Temperature Operating Range
- *Cooling: -10C (DB)- +46C (DB), *Heating: -25C (WB)- +20C (WB)
- Sound Pressure Level
- Normal Mode 61dB(A), Silent Mode 58dB(A)
- Sound Power Level
- 75.5dB
