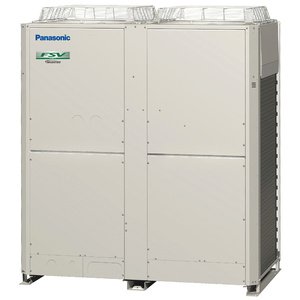

Panasonic 113kW VRF 2 Pipe FSV ME1
U-20ME1R8 + U-20ME1R8
Panasonic’s VRF 2 Pipe FSV ME1 system is the newly designed next generation VRF. It is a large capacity and high efficiency system and offers a wide range from 22.4kW to 168kW.
113kW VRF 2 Pipe FSV ME1
VRF Benefits:
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
ME1 Series Features:
• Compact outdoor units
• Bigger capacity in one outdoor unit (Max 56kW)
• Wider range of systems (Max 168kW)
• Long max piping length up to 1000m
• Increased connectable capacity ratio up to 200%
• Demand response ready (AS4755 Compliant)
• Up to 64 Indoor units connectable
• High outdoor unit static pressure up to 80 Pa
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Cooling is possible as high as 46C DB
• Suitable for R22 renewal projects (Refer to Page 94)
• Super High COP mode available by dip switch setting
• Hi-durable model is available
ME1 Series Energy-saving concept
• Panasonic inverter compressor
• Constant-speed compressor
• Accumulator
• Fan guard
• Newly designed high performance fan
• Heat exchanger copper tubes, heat exchanger fins
• Sub-cooling circuit
• Oil separator
• Ease of installation
• Simple to design
• Easy to control
• Simple to commission
• Accurate capacity control
• Easy to position
• Discharge air temperature control
• Wide selection and connectability
• Easy to maintain
• Lower running and life cycle costs
ME1 Series Features:
• Compact outdoor units
• Bigger capacity in one outdoor unit (Max 56kW)
• Wider range of systems (Max 168kW)
• Long max piping length up to 1000m
• Increased connectable capacity ratio up to 200%
• Demand response ready (AS4755 Compliant)
• Up to 64 Indoor units connectable
• High outdoor unit static pressure up to 80 Pa
• Extended operating range to provide heating at outdoor temperature as low as -25C WB
• Cooling is possible as high as 46C DB
• Suitable for R22 renewal projects (Refer to Page 94)
• Super High COP mode available by dip switch setting
• Hi-durable model is available
ME1 Series Energy-saving concept
• Panasonic inverter compressor
• Constant-speed compressor
• Accumulator
• Fan guard
• Newly designed high performance fan
• Heat exchanger copper tubes, heat exchanger fins
• Sub-cooling circuit
• Oil separator
Specification
- KW
- 113
- HP
- 40
- Power Supply
- 415V 3-phase/50Hz
- Capacity
- *Cooling 113kW, 385,700BTU/h; *Heating 127kW, 433,400BTU/h
- EER/COP
- *Cooling 3.36 W/W, *Heating 3.85 W/W
- Dimensions (H X W X D)
- 1,758 x 3,140 x 930mm
- Net Weight
- 842kg
- Electrical Ratings (415V)
- *Cooling 51.7A, 33.6kW; *Heating 50.7A, 33kW
- Starting Current (415V)
- 128A
- Air Flow Rate
- 9,450L/s
- Refrigerant Amount At Shipment
- 18kg
- External Static Pressure
- 80Pa
- Piping Connections
- Gas Pipe 38.1mm, Liquid Pipe 19.05mm, Balance Pipe 6.35mm
- Ambient Temperature Operating Range
- *Cooling: -10C (DB)- +46C (DB), *Heating: -25C (WB)- +20C (WB)
- Sound Pressure Level
- Normal Mode 66dB(A), Silent Mode 63dB(A)
- Sound Power Level
- 80.5dB
