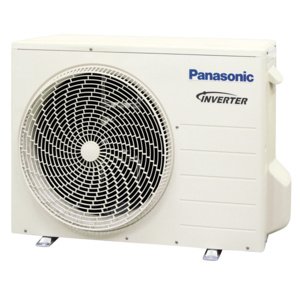

Panasonic 3.4kW Outdoor Unit Reverse Cycle Inverter (Mini Cassette)
CU-E12QB4R
The 3.4kW outdoor unit that pairs with the CS-E12QB4RW Mini Cassette system.
3.4kW Outdoor Unit Reverse Cycle Inverter (Mini Cassette)
In the quiet mode during cooling operation with low fan speed, this outdoor system is whisper quiet at only 25dB.
Specification
- Star Rating
- *Cooling 2.5, *Heating 2.5
- Operating Range (Outdoor)
- *Cooling 5~46C, *Heating -15~24C
- Additional Gas Amount
- 20g/m
- Pipe Length For Additional Gas
- 7.5
- Pipe Length
- Min 3m, Max 15m
- Power Supply
- Outdoor
- Refrigerant Pipe Diameter
- 6.35mm Liquid Side, 12.70mm Gas Side
- Net Weight
- 18kg Indoor, 33kg Outdoor
- Dimensions (H X W X D)
- 260 x 575 x 575 mm (619 x 824 x 299 mm)
- Sound Power Level DB
- *Cooling 64/- (Outside Hi/S-Lo), *Heating 65/- (Outside Hi/S-Lo)
- Sound Pressure Level DB (A)
- *Cooling 35/26/23 (Inside Hi/Lo/S-Lo), 49/- (Outside Hi/S-Lo), *Heating 37/28/25 (Inside Hi/Lo/S-Lo), 50/- (Outside Hi/S-Lo)
- Airflow
- *Cooling 175L/s, *Heating 195L/s
- Electrical Data
- *Cooling 240V, 3.9A, 0.88kW(0.22-1.18), *Heating 240V, 4.6A, 1.05kW(0.21-1.68)
- EER/COP
- *Cooling 13.18Btu/hW, 3.86W/W, *Heating 12.95Btu/hW, 3.81W/W
- Cooling/Heating Capacity
- *Cooling 3.4kW(0.85~4.00), 11,600Btu/h(2,900~13,600), *Heating 4.0kW(0.85~5.40), 13,600Btu/h(2,900~18,400)
