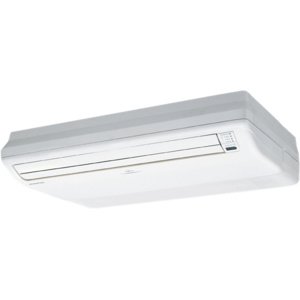

Fujitsu 8.5 Kw Under Ceiling Air Conditioner Reverse Cycle Inverter

ABTA30LBT 8.5kW Cooling 10.0kW Heating

With slim and lightweight design, these models are ideal for ceiling installation if you have limited or no wall space.

8.5 Kw Under Ceiling Air Conditioner Reverse Cycle Inverter

Up/Down Swing Louvre

The up/down louvre automatically swings up and down.
Auto Shut Louvre

The auto shut louvres close or open automatically when the unit stops or starts.
Auto Restart

Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
Program Timer

This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
Filter sign

Indicates the filter cleaning period by lamp.
ALL DC

With All DC, electricity loss is decreased and power consumption reduced.
Auto-Changeover

The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
Double Swing Automatic

Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
Automatic Louvre

The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
Automatic Air Flow Adjustment

When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
Sleep Timer

The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
Economy mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.
ON-OFF Timer

ON-OFF timer can be set to operate once every 24 hours.
Blue Fin Heat Exchanger
Extreme quiet and energy efficient, they are ideal for residential or commercial situations.

Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
Fresh air intake

Fresh air can be taken in by a fan which can be connected using UTD-ECS5A* (optional parts). *Selected ducted units only
Right/Left Swing Louvre

The right/left louvre automatically swings in either direction.

Specification

Model No. - Indoor
ABTA30LBT
Model No. - Outdoor
AOTA30LGTL & AOTA30LFTL
Reverse Cycle System
Yes
Cooling Capacity (Watts)
8,500
Cooling Capacity (BTU/h)
29,000
Range (Watts)
2,800-10,000
Range (BTU/h)
9,500-34,100
Heating Capacity (Watts)
10,000
Heating Capacity (BTU/h)
34,100
Range (Watts)
27,00-11,200
Range (BTU/h)
9,200-38,200
Power Supply (Volts)
230
Phase-Frequency (Ph - Hz)
1-50
Power Supply Attachment
Outdoor
Running Current, Cooling (Amps)
10.8
Running Current, Range (Amps)
Max 17.0
Input, Cooling (Watts)
2,570
Input, Range (Watts)
Max 4,040
Running Current, Heating (Amps)
11.6
Running Current, Range (Amps)
Max 17.0
Input, Heating (Watts)
2,770
Input, Range (Watts)
Max 4,040
Moisture Removal (l/hr)
2.5
E.E.R. - Cooling
3.31
C.O.P. - Heating
3.61
Star Rating - Cooling
2
Star Rating - Heating
2.5
Fan Speed
4
Air Circulation, High (l/s)
461
Compressor Type
Twin Rotary
Dimensions - Inside Unit (HxWxD Mm)
240x1660x700
Weight - Inside Unit (kg)
46
Dimensions - Outside Unit (HxWxD Mm)
830x900x330
Weight - Outside Unit (kg)
61
I.U. Sound Pressure Level (dBA@1mtr)
45
O.U. Sound Pressure Level (dBA@1mtr)
53
O.U. Sound Power Level (dBA)
69
Refrigerant Type
R410A
Connection Pipe Sizes, Gas (mm)
15.88
Connection Pipe Sizes, Liquid (mm)
9.52
Pre Charged Length (Metre)
20
Minimum Pipe Length (Metre)
5
Maximum Pipe Length (Metre)
50
Maximum Pipe Height (Metre)
30
Pipe Connection Methods
Flare
Outdoor Operating Temp, Cooling Degrees C
-15 to 46
Outdoor Operating Temp, Heating Degrees C
-15 to 24
