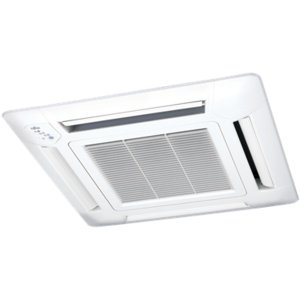

Fujitsu 7.1Kw Compact Cassette Reverse Cycle Air Conditioner

Fujitsu Indoor AUTG24LVLC Outdoor AOTG24LATC

Incorporating the latest fan technology, these units fit neatly into the ceiling and distribute conditioned air through 3 or 4 sides of the unit.

7.1Kw Compact Cassette Reverse Cycle Air Conditioner

Auto Shut Louvre
The auto shut louvres close or open automatically when the unit stops or starts.

Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.

Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.

Filter sign
Indicates the filter cleaning period by lamp.

ALL DC
With All DC, electricity loss is decreased and power consumption reduced.

Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.

Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.

Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

Economy mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.

ON-OFF Timer
ON-OFF timer can be set to operate once every 24 hours.

Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.

Weekly Timer
Different on-off times can be set for up to 7 days.

Specification

Model No. - Indoor
AUTG24LVLC
Model No. - Outdoor
AOTG24LATC
Reverse Cycle System
Yes
Cooling Capacity (Watts)
7,100
Cooling Capacity (BTU/h)
24,200
Range (Watts)
2,900-8,000
Range (BTU/h)
9,900-27,300
Heating Capacity (Watts)
8,000
Heating Capacity (BTU/h)
27,300
Range (Watts)
2,200-9,100
Range (BTU/h)
27,300
Power Supply (Volts)
230
Phase-Frequency (Ph - Hz)
1-50
Power Supply Attachment
Outdoor
Running Current, Cooling (Amps)
9.1
Running Current, Range (Amps)
Max 15.7
Input, Cooling (Watts)
2,160
Input, Range (Watts)
Max 2,470
Running Current, Heating (Amps)
9.3
Running Current, Range (Amps)
Max 15.7
Input, Heating (Watts)
2,210
Input, Range (Watts)
Max 2,800
Moisture Removal (l/hr)
2.7
E.E.R. - Cooling
3.29
C.O.P. - Heating
3.61
Star Rating - Cooling
2
Star Rating - Heating
2.5
Fan Speed
4
Air Circulation, High (l/s)
258
Compressor Type
DC Twin Rotary
Dimensions - Inside Unit (HxWxD Mm)
245(49)×570(700)×570(700) (Grille)
Weight - Inside Unit (kg)
16 (2.6) (Grille)
Dimensions - Outside Unit (HxWxD Mm)
830×900×330
Weight - Outside Unit (kg)
60
I.U. Sound Pressure Level (dBA@1mtr)
49
O.U. Sound Pressure Level (dBA@1mtr)
53
O.U. Sound Power Level (dBA)
68
Refrigerant Type
R410A
Connection Pipe Sizes, Gas (mm)
15.88
Connection Pipe Sizes, Liquid (mm)
6.35
Pre Charged Length (Metre)
20
Minimum Pipe Length (Metre)
3
Maximum Pipe Length (Metre)
30
Maximum Pipe Height (Metre)
30
Pipe Connection Methods
Flare
Outdoor Operating Temp, Cooling Degrees C
-10 to 46
Outdoor Operating Temp, Heating Degrees C
-15 to 24
