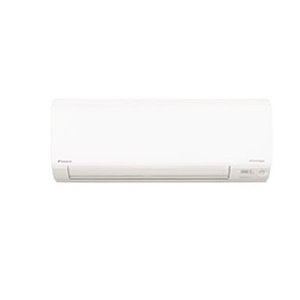

Daikin P-Series wall mounted air conditioners are a natural choice for those wanting the comfort of a unit that blends unobtrusively with its surroundings. The same technology that makes the Daikin indoor unit so compact also makes it powerful, yet quiet and energy efficient.

The aesthetic design of the units also has functional appeal. The smooth surface of the flat panel design can be wiped clean and the flat panel easily removed for more thorough cleaning. Daikin's air purifying filters and innovative air flow systems ensure that fresh, conditioned air flows to every corner of the room.

Specification

Rated Capacity

*Cool 9.4kW, *Heat 10.3kW

Capacity Range

*Cool 2.0-11.2kW, *Heat 1.9-12.0kW

Indoor Airflow Rate (Hi)

*Cool 372 l/s, *Heat 413 l/s

Indoor Fan Speeds

5 steps, quiet and automatic

Energy Label/Star Ratings

*Cool 2, *Heat 2

Front Panel Colour

White

Power Supply

1 phase, 220-240, 50Hz

Power Input (Rated)

*Cool 2.79kW, *Heat 3.07kW

E.E.R/C.O.P

*Cool 3.37, *Heat 3.36

A.E.E.R/A.C.O.P

*Cool 3.27, *Heat 3.28

Dimensions (H X W X D)

*Indoor 340 x 1200 x 259mm, *Outdoor 990 x 940 x 320mm

Weight

Indoor 18kg, Outdoor 82kg

Compressor Type

Hermetically Sealed Swing Type

Refrigerant Type

R32

Max Pipe Length

30m

Max Level Difference

20m

Pipe Sizes

Liquid 6.4mm, Gas 15.9mm

Outdoor Operating Range (outdoor Temp)

*Cool -10C to 46C, *Heat -15C to 18C

Indoor Sound Level (H/SL)

*Cool 53/38 dBA, *Heat 52/35 dBA

Outdoor Sound Level (H/SL)

*Cool 54/51, *Heat 55/51

Outdoor EPA Sound Power Level (H)

*Cool 66 dBA, *Heat 67
