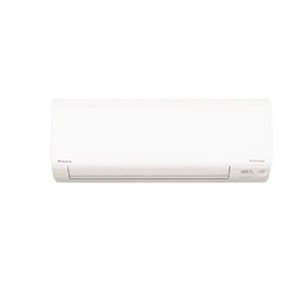

Daikin P-Series wall mounted air conditioners are a natural choice for those wanting the comfort of a unit that blends unobtrusively with its surroundings. The same technology that makes the Daikin indoor unit so compact also makes it powerful, yet quiet and energy efficient.

The aesthetic design of the units also has functional appeal. The smooth surface of the flat panel design can be wiped clean and the flat panel easily removed for more thorough cleaning. Daikin's air purifying filters and innovative air flow systems ensure that fresh, conditioned air flows to every corner of the room.

Specification

Rated Capacity

*Cool 4.6kW, *Heat 4.7kW

Capacity Range

*Cool 0.9-5.4kW, *Heat 1.0-6.6kW

Indoor Airflow Rate (Hi)

*Cool 175 l/s, *Heat 177 l/s

Indoor Fan Speeds

5 steps, quiet and automatic

Energy Label/Star Ratings

*Cool 2.5, *Heat 3

Front Panel Colour

White

Power Supply

1 phase, 220-240, 50Hz

Power Input (Rated)

*Cool 1.24kW, *Heat 1.22kW

E.E.R/C.O.P

*Cool 3.71, *Heat 3.85

A.E.E.R/A.C.O.P.

*Cool 3.69, *Heat 3.84

Dimensions (H X W X D)

*Indoor 295 x 800 x 215mm, *Outdoor 735 x 825 x 300mm

Weight

Indoor 10kg, Outdoor 47kg

Compressor Type

Hermetically Sealed Swing Type

Refrigerant Type

R32

Max Pipe Length

30m

Max Level Difference

20m

Pipe Sizes

Liquid 6.4mm, Gas 12.7mm

Outdoor Operating Range (outdoor Temp)

*Cool -10C to 46C, *Heat -15C to 18C

Indoor Sound Level (H/SL)

*Cool 44/32 dBA, *Heat 43/30 dBA

Outdoor Sound Level (H/SL)

*Cool 47/44, *Heat 48/45

Outdoor EPA Sound Power Level (H)

*Cool 59 dBA, *Heat 60
