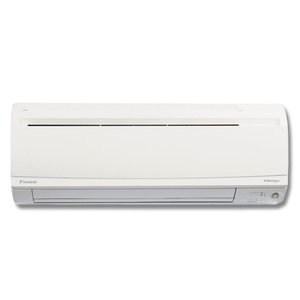

Daikin Split System Reverse Cycle Inverter Wall Mounted 2.5Kw L Series
Indoor FTXS25LVMA Outdoor RXS25LVMA
Daikin home air conditioning systems can keep you cool in summer and warm in winter, keeping you comfortable all year round. Capacity 20m2 area.
Split System Reverse Cycle Inverter Wall Mounted 2.5Kw L Series
Wall mounted design Series
Daikin's wall-mounted split system air conditioners are an exceptional choice for those wanting a neat unit that blends unobtrusively with its surroundings. The same advanced technology that makes the Daikin indoor unit so compact also makes it powerful, quiet and energy efficient.
The pleasing design of the units also has functional appeal. The smooth surface of the flat panel models can be wiped clean and the flat panel easily removed for more thorough cleaning.
Daikin's air purifying filters and innovative air flow systems ensure that fresh, conditioned air flows to every corner of the room.
SUPERIOR COMFORT
Program Dry Function. The system rids the room of humidity while maintaining the temperature as much as possible.It automatically controls temperature and airflow rate and will switch into cooling mode if the room temperature increases too much. Indoor Unit Quiet Operation Function. Sound levels are reduced by 2-3 decibels (dB) from the low fan speed for quieter
heating and cooling.** Outdoor Unit Quiet Operation Function. Outdoor unit sound levels can be reduced
by 3dB for times when quieter operation is needed.** Intelligent Eye. This is an infrared motion sensor with the ability to sense movement in the room. When you are in the room, the air conditioner operates normally. If you leave the room for more than 20 minutes the air conditioner automatically changes to an energy-saving operation. Automatic Operation (reverse cycle
only). For year-round comfort, this function allows the unit to automatically switch between heating and cooling modes as required. Auto Fan Speed. To reduce operating noise, the fan speed is automatically controlled by the micro-processor to suit the thermostat setting and prevailing room temperature.
COMFORTABLE AIRFLOW
Comfortable Mode. The new flap changes the delivery angle to horizontal for cooling and vertical for heating operation, to prevent cold or warm air from blowing directly onto your body. 3-D Airflow. Combines vertical and
horizontal auto-swing to circulate cool/ warm air to the corners of large spaces.
HEALTHY AND CLEAN
Air-Purifying Filter. Traps microscopic particles and decomposes odours to purify the air in your room.
ECONOMICAL
Econo Mode. Controls the upper limit of frequency, reducing power consumption. This reduces the load on the electrical circuit when multiple electrical devices are used simultaneously.** Night Set Mode. Through the use of the ‘Timer-OFF Circuit’, the preset room temperature gently rises in cooling or falls in heating before the unit stops. This energy efficient feature allows you to sleep comfortably without feeling a sudden change in the room temperature. Inverter Powerful Operation. Pushing the POWERFUL button on the remote control gives you a boost in cooling and heating power for a 20-minute
period, even if the unit is already operating at high capacity. Standby Power Function. When the air conditioner is not in use, the standby power function turns off power supply to the outdoor unit and sets the indoor unit into standby electricity saving mode, reducingm energy consumption.
CONVENIENT
24-Hour On/Off Timer. The timer can be preset to start and stop the air conditioner at any time within a 24‑hour period. Once the times are set, the air conditioner can be operated for a period by simply pressing the ON or OFF timer buttons. Weekly Timer. This function makes it easy to enter up to four settings per day for each day of the week. It not only allows you to program on and off time, but also the desired temperature.
EASY TO OPERATE
Self-Diagnosis. In the event that a problem develops with the unit, malfunction codes can be displayed on the liquid crystal panel of the remote control for fast and easy fault diagnosis. Auto-Restart. The unit memorises the operation mode, airflow and temperature settings. Should there be a power failure when the unit is in operation, it will automatically return to the same operating conditions when the power is restored.
PROTECTION
Anti-Corrosion. The special anti-corrosion coating on the outdoor unit heat exchanger ensures greater resistance to salt damage and atmospheric corrosion. Protection of the entire outdoor unit is available at an additional cost.
OPTIONS
Centralised Control. Centralised control of up to five systems is possible using a central control panel and an optional
wiring adaptor. External ON/OFF Control. Control of the system by an external field-supplied time clock is possible with an optional wiring adaptor PCB.
Daikin's wall-mounted split system air conditioners are an exceptional choice for those wanting a neat unit that blends unobtrusively with its surroundings. The same advanced technology that makes the Daikin indoor unit so compact also makes it powerful, quiet and energy efficient.
The pleasing design of the units also has functional appeal. The smooth surface of the flat panel models can be wiped clean and the flat panel easily removed for more thorough cleaning.
Daikin's air purifying filters and innovative air flow systems ensure that fresh, conditioned air flows to every corner of the room.
SUPERIOR COMFORT
Program Dry Function. The system rids the room of humidity while maintaining the temperature as much as possible.It automatically controls temperature and airflow rate and will switch into cooling mode if the room temperature increases too much. Indoor Unit Quiet Operation Function. Sound levels are reduced by 2-3 decibels (dB) from the low fan speed for quieter
heating and cooling.** Outdoor Unit Quiet Operation Function. Outdoor unit sound levels can be reduced
by 3dB for times when quieter operation is needed.** Intelligent Eye. This is an infrared motion sensor with the ability to sense movement in the room. When you are in the room, the air conditioner operates normally. If you leave the room for more than 20 minutes the air conditioner automatically changes to an energy-saving operation. Automatic Operation (reverse cycle
only). For year-round comfort, this function allows the unit to automatically switch between heating and cooling modes as required. Auto Fan Speed. To reduce operating noise, the fan speed is automatically controlled by the micro-processor to suit the thermostat setting and prevailing room temperature.
COMFORTABLE AIRFLOW
Comfortable Mode. The new flap changes the delivery angle to horizontal for cooling and vertical for heating operation, to prevent cold or warm air from blowing directly onto your body. 3-D Airflow. Combines vertical and
horizontal auto-swing to circulate cool/ warm air to the corners of large spaces.
HEALTHY AND CLEAN
Air-Purifying Filter. Traps microscopic particles and decomposes odours to purify the air in your room.
ECONOMICAL
Econo Mode. Controls the upper limit of frequency, reducing power consumption. This reduces the load on the electrical circuit when multiple electrical devices are used simultaneously.** Night Set Mode. Through the use of the ‘Timer-OFF Circuit’, the preset room temperature gently rises in cooling or falls in heating before the unit stops. This energy efficient feature allows you to sleep comfortably without feeling a sudden change in the room temperature. Inverter Powerful Operation. Pushing the POWERFUL button on the remote control gives you a boost in cooling and heating power for a 20-minute
period, even if the unit is already operating at high capacity. Standby Power Function. When the air conditioner is not in use, the standby power function turns off power supply to the outdoor unit and sets the indoor unit into standby electricity saving mode, reducingm energy consumption.
CONVENIENT
24-Hour On/Off Timer. The timer can be preset to start and stop the air conditioner at any time within a 24‑hour period. Once the times are set, the air conditioner can be operated for a period by simply pressing the ON or OFF timer buttons. Weekly Timer. This function makes it easy to enter up to four settings per day for each day of the week. It not only allows you to program on and off time, but also the desired temperature.
EASY TO OPERATE
Self-Diagnosis. In the event that a problem develops with the unit, malfunction codes can be displayed on the liquid crystal panel of the remote control for fast and easy fault diagnosis. Auto-Restart. The unit memorises the operation mode, airflow and temperature settings. Should there be a power failure when the unit is in operation, it will automatically return to the same operating conditions when the power is restored.
PROTECTION
Anti-Corrosion. The special anti-corrosion coating on the outdoor unit heat exchanger ensures greater resistance to salt damage and atmospheric corrosion. Protection of the entire outdoor unit is available at an additional cost.
OPTIONS
Centralised Control. Centralised control of up to five systems is possible using a central control panel and an optional
wiring adaptor. External ON/OFF Control. Control of the system by an external field-supplied time clock is possible with an optional wiring adaptor PCB.
Specification
- Sound Power Level (H)
- Outdoor (dBA) 62
- Outdoor Sound Level (H/SL)
- * Cool (dBA) 47/43 * Heat (dBA) 47/44
- Indoor Sound Level (H/SL)
- * Cool (dBA) 40/22 * Heat (dBA) 40/25
- Outdoor Operating Range (outdoor Temp)
- *Cool(CDB) 10 TO 46 * Heat (CWB) -15 to 18
- Pipe Sizes
- * Liquid (mm) 6.4 * Gas (mm) 9.5
- Max Level Difference
- 15m
- Max Pipe Length
- 20m
- Refrigerant Type
- R410A
- Compressor Type
- Hermetically sealed swing type
- Weight
- * Indoor 10kg * Outdoor 34kg
- Dimensions (H X W X D)
- * Indoor (mm) 295x800x215 * Outdoor (mm) 550x765x285
- A.E.E.R./A.C.O.P.
- Cool/Heat 4.56/4.80
- E.E.R./C.O.P.
- Cool/Heat 4.63/4.86
- Power Input (Rated)
- * Cool (kW) 0.54 * Heat (kW) 0.70
- Power Supply
- 1 phase, 220-240, 50Hz
- Front Panel Colour
- White
- Energy Label/ Star Ratings
- * Cool 3 * Heat 4.5
- Indoor Fan Speeds
- 5 steps, quiet and automatic
- Indoor Airflow Rate (Hi)
- * Cool (I/s) 177 * Heat (I/s) 192
- Capacity Range
- * Cool (kW) 1.3 - 3.2 * Heat (kW) 1.3 - 4.7
- Rated Capacity
- * Cool (kW) 2.5 * Heat (kW) 3.4
