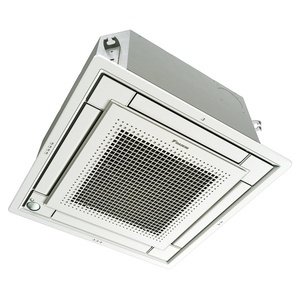

Daikin Sky Air Cassette Split System Reverse Cycle Inverter 6.0Kw Premium
Indoor Unit FFQ60C2VEB Outdoor Unit RXS60K4V1B
Daikin’s Fully Flat Cassette is a powerful, efficient and discreet solution for commercial, retail and residential applications where both aesthetics and performance are paramount.
Sky Air Cassette Split System Reverse Cycle Inverter 6.0Kw Premium
The Fully Flat Cassette combines the latest
technology with innovative functions
for high operating efficiency and user
comfort, all within a unique design that
allows the visible panel to fit flush within
standard architectural ceiling panels.
Differentiated by excellence.
To ensure perfect interior comfort the Daikin
Fully Flat Cassette can be fitted with an optional
sensor* linked to an advanced controller.
Flexible solution.
The need for flexible usage of space often means that
temporary or permanent barriers are erected leaving the
cassette close to a wall or in a corner with the resulting
imbalances in airflow.
Our advanced technology anticipates this and we have
made it possible to use the controller to individually open or
close one of the four flaps to restore optimal efficiency and
to save on energy costs.
The sensor* also adapts the direction of the airflow
depending of where people are situated in the room,
ensuring no draught and individual comfort at any time.
Because hot air rises, the natural temperature distribution
in a room is for it to be warmer near the ceiling and cooler
near the floor. The cassette’s ‘floor’ sensor* detects the
temperature difference and re-directs the airflow to ensure
that the temperature distribution is even.
When there is nobody in the room, the presence sensor*
adjusts the set point or switches off the unit, avoiding
unneccesary cooling or heating. When motion is detected
the temperature is reset to its original setpoint ensuring
perfect, energy efficient operation
technology with innovative functions
for high operating efficiency and user
comfort, all within a unique design that
allows the visible panel to fit flush within
standard architectural ceiling panels.
Differentiated by excellence.
To ensure perfect interior comfort the Daikin
Fully Flat Cassette can be fitted with an optional
sensor* linked to an advanced controller.
Flexible solution.
The need for flexible usage of space often means that
temporary or permanent barriers are erected leaving the
cassette close to a wall or in a corner with the resulting
imbalances in airflow.
Our advanced technology anticipates this and we have
made it possible to use the controller to individually open or
close one of the four flaps to restore optimal efficiency and
to save on energy costs.
The sensor* also adapts the direction of the airflow
depending of where people are situated in the room,
ensuring no draught and individual comfort at any time.
Because hot air rises, the natural temperature distribution
in a room is for it to be warmer near the ceiling and cooler
near the floor. The cassette’s ‘floor’ sensor* detects the
temperature difference and re-directs the airflow to ensure
that the temperature distribution is even.
When there is nobody in the room, the presence sensor*
adjusts the set point or switches off the unit, avoiding
unneccesary cooling or heating. When motion is detected
the temperature is reset to its original setpoint ensuring
perfect, energy efficient operation
Specification
- Refrigerant Pipe Size
- * Liquid (mm) 6.35 * Gas (mm) 12.7
- Max Level Difference
- 20m
- Max Pipe Length
- 30m
- Capacity Range
- * Cool (kW) 2.2-6.7 * Heat (kW) 1.7-8.0
- Rated Capacity
- * Coo (kW) 5.7 * Heat (kW) 7.0
