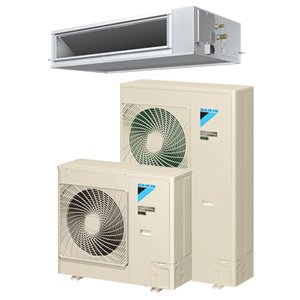

Daikin Premium Low Profile Ducted Reverse Cycle Inverter Three Phase 10.0kW
Indoor/ FBQ100DV1A Outdoor/RZQ100HAY4A
At 300mm high with ESP of up to 200Pa, this is the ideal solution for commerical applications with tight ceiling space. Heats and cools up to a min. 100m2.
Premium Low Profile Ducted Reverse Cycle Inverter Three Phase 10.0kW
Specification
- Rated Capacity
- *Cool 10kW, *Heat 11.2kW
- Capacity Rating
- *Cool 5.0-11.2kW, *Heat 5.1-12.8kW
- Power Input (Rated)
- *Cool 2.76kW, *Heat 2.63kW
- E.E.R/C.O.P
- *Cool 3.62, *Heat 4.26
- Air Flow Rate (Rated)
- 533 l/s
- Indoor Sound Level (@ 1.5m)
- 38 dBA
- Piping Length
- 75m
- Indoor Fan Speeds
- H/L
- Dimensions (H X W X D)
- *Indoor 300x1400x700 mm, *Outdoor 1430x940x320 mm
- Weight
- *Indoor 46kg, *Outdoor 108kg
- Power Supply
- 1 Phase, 220-240V, 50Hz
- Compressor Type
- Hermetically Sealed Scroll Type
- Refrigerant
- R410A
- Pipe Sizes
- *Liquid 9.5 mm (Flared), *Gas 15.9 mm (Flared), *Drain ID 25/OD 32 mm
- Supply Air Opening (H X W)
- 215x1160 mm
- Return Air Opening (H X W)
- 247-1325 mm
- Outdoor Operating Range
- *Cool -5 to 46 CDB, *Heat -15 to 16 CWB
- EPA Sound Power Level
- 69 dBA
- Outdoor Sound Level (H) @ 1m
- 53/55 dBA(C/H)
