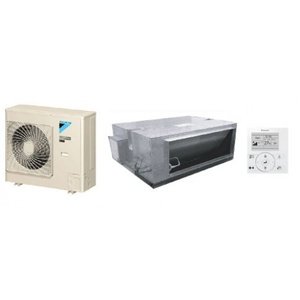

Daikin Premium Ducted Reverse Cycle Inverter Three Phase 12.5Kw High Static
Indoor/ FDY125LV1 Outdoor/ RZQ125HAY4A
At 300mm high with ESP of up to 200Pa, this is the ideal solution for commercial applications with tight ceiling space. Heats and cools up to a min. 125m2.
Premium Ducted Reverse Cycle Inverter Three Phase 12.5Kw High Static
Unlike convential air conditioners which operate at a fixed speed, constantly starting and stopping the compressor to control room temperature, a Daikin inverter continuously adjusts the power to suit the temperature in the room for a more comfortable, energy efficient home. Comfort - once your ideal temperature is reached, a Daikin Inverter continuously adjusts it's power output to ensure that it is constantly maintained, without te large temperature fluctuations of a non - inverter system. Energy Efficiency - With traditional non - inverter air conditioners, the compressor speed is fixed, so it must cycle on and off to control capacity and room temperature, wasting energy returning the system to operating conditions.
Specification
- Refrigerant Pipe Size
- * Liquid 9.5mm (Flared) * Gas 15.9mm (Flared)
- Pre Charged Length
- 30m
- Max Level Difference
- 30
- Max Pipe Length
- 75m
- Air Flow Rate (Rated)
- 840 I/s
- E.E.R./C.O.P.
- Cool/Heat 3.24/3.70
- Capacity Range
- * Cool 5.7-14.0kW * Heat 6.0-16.0kW
- Rated Capacity
- * Cool 12.5kW * Heat 15.0kW
