Daikin Super Plus Multihead Condensor Unit 15.5Kw
RMK(X)S160EV1A Super Multi Plus
Ideal For Air conditioning your home with a Single outdoor unit and up to 9 Indoor units. A variety of indoor units are available to your needs.
Super Plus Multihead Condensor Unit 15.5Kw
The Out door unit dor Daikin can be selected from three models. These three models can provide a precise power consumption for your home, office or shop.

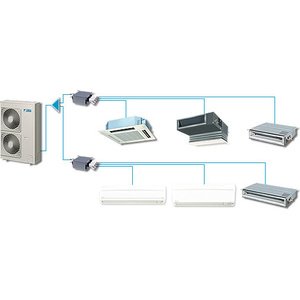

For the indoor units that connect to the out door unit via a branch provider, you can choose from 32 models and 7 types of cooling or heating.
1.Ceiling-mounted cassette type.
2.Ceiling-mounted built-in type.
3.Ceiling-suspended type.
4.Duct-connected type.
5.wall-mounted type.
6.Floor-standing type.
The high energy savings and COP values of the RMXS160EV1A are achieved by the Advanced DC Inverter, reluctance DC compressor and DC fan motor.
Night Quiet Mode
Outdoor unit operating sound levels are automatically decressed by 3dB from the rated operation sound when the outdoor temperature has dropped by 6°C from the maximum temperature recorded during the day.
Anti-Corrosion
The special anti-corrosion coating on the outdoor unit heat exchanger ensures greater resistance to salt damage and atmospheric pollution.
Self Diagnosis
In the event that a problem develops with the unit, malfunction codes are displayed on the liquid crystal panel of the remote controller for fast and easy maintenance.
Unit RMXS160EV1A
Rated Capacity
Cooling(KW)15.2 Heating(KW)17.5
Front Panel Colour Ivory White
Power Supply 1 phase, 220-240V, 50Hz
Dimensions (H x W x D) Outdoor (mm)1345 x 900 x 320
Weight Outdoor (kg)125
Compressor Type Motor Output 3.5
Type Hermetically sealed scroll type
Refrigerant Charge (kg) 4.0 Type R410A
Refrigerant Pipe Size
Drain (mm)18.0
Liquid (mm)9.5
Gas (mm)19.1
Operating Range (Outdoor Temp)
Cooling CDB -5 to 46
Heating CWB -15 to 15.5
Outdoor Sound Level
Cool (dBA)54
Heat (dBA)56
Total Indoor Unit Capacity kW 8.0 to 20.8
Number of Indoor Units 9
Number of BP to be connected 3
Number of Wiring Connections 3 for power supply, 2 for interunit wiring
Max. interunit piping length
Total main and branch piping (m) 145
Total main piping (m)55
Total branch piping (m)90
Max. length for each room (m)15
Necessity of additional charge
kg/m Necessary
Max. height difference
Between indoor or BP unit and outdoor unit: 30
Between indoor and BP unit: 15
For the indoor units that connect to the out door unit via a branch provider, you can choose from 32 models and 7 types of cooling or heating.
1.Ceiling-mounted cassette type.
2.Ceiling-mounted built-in type.
3.Ceiling-suspended type.
4.Duct-connected type.
5.wall-mounted type.
6.Floor-standing type.
The high energy savings and COP values of the RMXS160EV1A are achieved by the Advanced DC Inverter, reluctance DC compressor and DC fan motor.
Night Quiet Mode
Outdoor unit operating sound levels are automatically decressed by 3dB from the rated operation sound when the outdoor temperature has dropped by 6°C from the maximum temperature recorded during the day.
Anti-Corrosion
The special anti-corrosion coating on the outdoor unit heat exchanger ensures greater resistance to salt damage and atmospheric pollution.
Self Diagnosis
In the event that a problem develops with the unit, malfunction codes are displayed on the liquid crystal panel of the remote controller for fast and easy maintenance.
Unit RMXS160EV1A
Rated Capacity
Cooling(KW)15.2 Heating(KW)17.5
Front Panel Colour Ivory White
Power Supply 1 phase, 220-240V, 50Hz
Dimensions (H x W x D) Outdoor (mm)1345 x 900 x 320
Weight Outdoor (kg)125
Compressor Type Motor Output 3.5
Type Hermetically sealed scroll type
Refrigerant Charge (kg) 4.0 Type R410A
Refrigerant Pipe Size
Drain (mm)18.0
Liquid (mm)9.5
Gas (mm)19.1
Operating Range (Outdoor Temp)
Cooling CDB -5 to 46
Heating CWB -15 to 15.5
Outdoor Sound Level
Cool (dBA)54
Heat (dBA)56
Total Indoor Unit Capacity kW 8.0 to 20.8
Number of Indoor Units 9
Number of BP to be connected 3
Number of Wiring Connections 3 for power supply, 2 for interunit wiring
Max. interunit piping length
Total main and branch piping (m) 145
Total main piping (m)55
Total branch piping (m)90
Max. length for each room (m)15
Necessity of additional charge
kg/m Necessary
Max. height difference
Between indoor or BP unit and outdoor unit: 30
Between indoor and BP unit: 15
Specification
- Output
- 15.5 kW
