Daikin Super Multihead Condensor Unit 10.0Kw
5MXS100ELMA

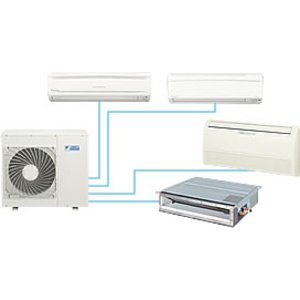

Connectable to up to 5 indoor units, the Outoor Unit Quiet Operation and Night Quiet Mode features of the 5MXS100EVMA will keep your home comfortable.
Super Multihead Condensor Unit 10.0Kw
Super Multi outdoor units feature Outdoor Unit quiet Operation and Night Quiet Mode. Pushing the QUIET button on the wireless remote controller decreases ouotdoor unit operation sound by 3dB from the rated operation sound.
Nightime operation sound for the outdoor unit is automatically decreased by 3dB from the rated outdoor sound. This function is available for cooling operation only.
Night Quiet Mode starts automatically when the outdoor temperature has dropped by 6°C from the maximum temperature recorded during the day.
Nightime operation sound for the outdoor unit is automatically decreased by 3dB from the rated outdoor sound. This function is available for cooling operation only.
Night Quiet Mode starts automatically when the outdoor temperature has dropped by 6°C from the maximum temperature recorded during the day.
Specification
- Max Installation Height Difference
- (m) 15 (between indoor and outdoor units)/7.5 (between indoor units)
- Necessity Of Additional Charge
- (g/m) 20 (for 40m or more)
- Max Pipe Length
- * m (total) 80 * m (per room) 30
- Operation Range
- * Cooling -10 to 46 * Heating -15 to 18
- Weight
- 83kg
- Dimensions (H X W X D)
- 990x940x320 mm
- Sound Power Level
- * Cooling (dBA) 62 * Heating (dBA) 62
- Sound Level
- * Cooling (dBA) 49/46 * Heating (dBA) 49/46
- Refrigerant Type
- R410A
- Compressor Type
- Hermetically sealed swing type
- Casing Colour
- Ivory White
- Max Connected Indoor Units Capacity
- 15.6 kW
- Power Supply
- 1 Phase, 220-240 V/220-230 V, 50/60 Hz
