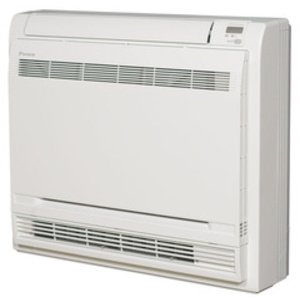

Daikin Floor Console Split Inverter Reverse Cycle Unit 2.5Kw Indoor Unit
FVXS25KV1A Super
The FVXS25G incorporates dual air discharge for superior heating comfort and a programme dry dehumidification function, and operates in temperatures between -10 and 46 degrees.
Floor Console Split Inverter Reverse Cycle Unit 2.5Kw Indoor Unit
Features
24-Hour On/Off Timer
The timer can be preset to start and stop the air conditioner at any time within a 24 hour period. Once the times are set, the air conditioner can be operated for a period by simply pressing the ON or OFF timer buttons.
Air Purifying Filter
Thie air purifying filter traps fine airborne particles as small as 0.01 microns in size (e.g. smoke particles), to purify the air in your room.
Auto Fan Speed Auto Fan Speed
To reduce operating noise, the fan speed is automatically controlled by the microprocessor to suit the thermostat setting and room temperature.
Automatic Operation
For unattended year round comfort, this function allows the unit to automatically switch between heating and cooling modes as required.
Auto-Restart
The unit memorises the operation mode, air flow setting, temperature and timing settings so that, should there be a power failure when the unit is in operation, it will automatically return to the same operating conditions when the power is restored.
Home Leave Operation
By pressing Daikin's new "Home leave operation" button when leaving the house, the air conditioner begins to operate at pre-selected temperature. Thus the home can be warmed or cooled much quicker upon returning.
Hot Start
When the heating operation starts or when the unit changes from cooling to heating there is no cold draught released into the room.
Indoor Unit Quiet Operation
Sound levels are reduced for quieter and more gentle heating and cooling.
Night Set Mode
Through the use of the 'Timer-OFF Circuit', the preset room temperature gently rises or falls before the unit stops. This energy-saving feature allows you to sleep comfortably without feeling a sudden change in the room temperature, while at the same time saving energy.
Photocatalytic Deodorising Filter
This trips and decomposes odours and even absorbs and neutralises bacteria and viruses. The filter is maintained by exposing it to sunlight once every six months.
Programme Dry Function
This function automatically reduces the level of humidity rather than room temperature.
Self Diagnosis
In the event that a problem develops with the unit, malfunction codes are displayed on the liquid crystal panel of the remote controller for fast and easy maintenance.
Vertical Auto-Swing (up and down)
The small flap in the indoor unit automatically swings up for finely tuned adjustments of the air current. When the unit is switched off the louvre closes automatically.
Washable Grille Washable Grille
The front grille of the indoor unit is detachable to allow for easy cleaning. The panel can be wiped over with a soft cloth and mild detergent solution and then simply snapped back into position.
Wide Angle Lourves
Wide angle lourves with their innovative curved design, provide air flow coverage to effectively cool/heat, no matter where the indoor unit is placed in the room.
Unit FVXS25GV1A
Indoor Air Flow
Cool (l/s)137
Heat (l/s)147
Indoor Fan Speeds 5 steps, quiet, automatic
Front Panel Colour White
Power Supply 1 phase, 220-240, 50Hz
Dimensions (H x W x D) Indoor (mm)600 x 700 x 210
Weight Indoor (kg)14
Refrigerant Pipe Size
Drain (mm)20.0
Liquid (mm)6.4
Liq/Gas 9.5
Indoor Sound Level
Heat (dBA)38/26/23
Cool (dBA)38/26/23
Temperature Control Microcomputer Control.
Heat Insulation Both liquid and gas pipes.
24-Hour On/Off Timer
The timer can be preset to start and stop the air conditioner at any time within a 24 hour period. Once the times are set, the air conditioner can be operated for a period by simply pressing the ON or OFF timer buttons.
Air Purifying Filter
Thie air purifying filter traps fine airborne particles as small as 0.01 microns in size (e.g. smoke particles), to purify the air in your room.
Auto Fan Speed Auto Fan Speed
To reduce operating noise, the fan speed is automatically controlled by the microprocessor to suit the thermostat setting and room temperature.
Automatic Operation
For unattended year round comfort, this function allows the unit to automatically switch between heating and cooling modes as required.
Auto-Restart
The unit memorises the operation mode, air flow setting, temperature and timing settings so that, should there be a power failure when the unit is in operation, it will automatically return to the same operating conditions when the power is restored.
Home Leave Operation
By pressing Daikin's new "Home leave operation" button when leaving the house, the air conditioner begins to operate at pre-selected temperature. Thus the home can be warmed or cooled much quicker upon returning.
Hot Start
When the heating operation starts or when the unit changes from cooling to heating there is no cold draught released into the room.
Indoor Unit Quiet Operation
Sound levels are reduced for quieter and more gentle heating and cooling.
Night Set Mode
Through the use of the 'Timer-OFF Circuit', the preset room temperature gently rises or falls before the unit stops. This energy-saving feature allows you to sleep comfortably without feeling a sudden change in the room temperature, while at the same time saving energy.
Photocatalytic Deodorising Filter
This trips and decomposes odours and even absorbs and neutralises bacteria and viruses. The filter is maintained by exposing it to sunlight once every six months.
Programme Dry Function
This function automatically reduces the level of humidity rather than room temperature.
Self Diagnosis
In the event that a problem develops with the unit, malfunction codes are displayed on the liquid crystal panel of the remote controller for fast and easy maintenance.
Vertical Auto-Swing (up and down)
The small flap in the indoor unit automatically swings up for finely tuned adjustments of the air current. When the unit is switched off the louvre closes automatically.
Washable Grille Washable Grille
The front grille of the indoor unit is detachable to allow for easy cleaning. The panel can be wiped over with a soft cloth and mild detergent solution and then simply snapped back into position.
Wide Angle Lourves
Wide angle lourves with their innovative curved design, provide air flow coverage to effectively cool/heat, no matter where the indoor unit is placed in the room.
Unit FVXS25GV1A
Indoor Air Flow
Cool (l/s)137
Heat (l/s)147
Indoor Fan Speeds 5 steps, quiet, automatic
Front Panel Colour White
Power Supply 1 phase, 220-240, 50Hz
Dimensions (H x W x D) Indoor (mm)600 x 700 x 210
Weight Indoor (kg)14
Refrigerant Pipe Size
Drain (mm)20.0
Liquid (mm)6.4
Liq/Gas 9.5
Indoor Sound Level
Heat (dBA)38/26/23
Cool (dBA)38/26/23
Temperature Control Microcomputer Control.
Heat Insulation Both liquid and gas pipes.
Specification
- Refrigerant Pipe Size
- * Liquid (mm) 6.4 * Gas (mm) 9.5
- Max Level Difference
- 15m
- Max Pipe Length
- 20m
- A.E.E.R/A.C.O.P
- Cool/Heat 4.12/4.18
- E.E.R/C.O.P
- Cool/Heat 4.17/4.22
- Energy Label/ Star Ratings
- * Cool 3.5 * Heat 3.5
- Capacity Range
- * Cool (kW) 1.3-3.0 * Heat (kW) 1.3-4.5
- Rated Capacity
- * Cool (kW) 2.5 * Heat (kW) 3.3
