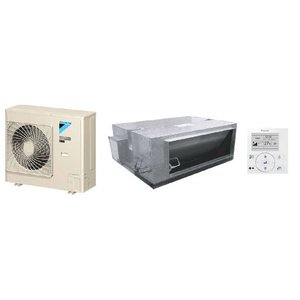

Daikin Ducted systems are ideal to keep your house warm in winter and cool in summer. The systems are super quiet without having any units on walls, and can cool an entire house.

EFFICIENT

The Home Leave function can beselected when leaving the house so thatyour air conditioner will operate at a preselected temperature. Alternatively it can also be used to record your preferred (default) settings. (only FDXS) Automatic Changeover Mode allows automatic selection of cooling or heating modes to suit the thermostat settings and prevailing room temperature. Program Dry Mode gives priority to reducing the level of humidity in the room rather than room temperature. Auto Restart Mode memorises the settings on the controller before a power outage and restar ts the unit to the same operating conditions when power is restored.options Centralised Control of up to five systems is possible using a central control panel and an optional wiring adapter. Easy to operate Self Diagnostics allows fast and easy diagnostics by monitoring the operation of the system and displaying a malfunction code in the unlikely event of a problem developing with the system. Automatic Defrosting is carried out to minimise the amount of frost on the outdoor heat exchanger ensuring efficient and high performance in winter. 24 Hour On/Off Timer can be pre-set to start and stop the air conditioner at any time within a 24 hour period. Once them times are set, the air conditioner can be operated for a period by simply pressing the ON or OFF timer buttons. Protection The special Anti-Corrosion Coating on the outdoor unit heat exchanger ensures greater resistance to salt damage and atmospheric corrosion. Protection of the entire outdoor unit is available at an additional cost. econo mical Night Set Mode: Through the use of the Timer-Off circuit, the preset room temperature gently rises in cooling or falls in heating before the unit stops. This energy efficient feature allows you to sleep comfortably without feeling a sudden change in room temperature.

DESIGN

Outdoor Unit Quiet Mode reduces the operating noise of the outdoor unit for times when low noise operation is required. Indoor Unit Designed and built in Australia (except FDXS series). Compact Design of indoor units allows installation into limited roof space. Indoor Units can be dismantled for easier installation into confined roof spaces.

Key Features: Controller

Backlit display
Adjustable off reminder timer
Large buttons and arrow
keys for simple operation
Guide on display
Weekly schedule timer
Multilingual display available

Specification

Outdoor Sound Level (H) @ 1m

* Pressure dBA (C/H) 48/50

EPA Sound Power Level DBA

66

Outdoor Operating Range

* Cool (C DB) -5 to 46 * Heat (C DB) -15 to 16

Return Air Opening (H X W)

1 x 400 (oval) mm

Supply Air Opening (H X W)

202 x 762 (Flange)

Pipe Sizes

* Liquid 6.4mm * Gas 12.7mm * Drain ID 25/ OD 32

Refrigerant

R410A

Compressor Type

Hermetically Sealed Swing Type

Power Supply V/Hz

1 Phase, 220-240V, 50Hz

Weight

* Indoor 35kg * Outdoor 64kg

Outdoor Dimensions ( H X W X D)

770 x 900 x 320

Indoor Dimensions (H X W X D)

300 x 1015 x 851 mm

Indoor Fan Speeds

H/M/L

Piping Length

50

Indoor Sound Level (@1.5m)

DBA 44.4

Air Flow Rate (Rated) I/s

370

E.E.R./C.O.P

C/H 3.4/3.7

Power Input (Rated)

* Cool 1.5 kW * Heat 1.62 kW

Capacity Range

* Cool (kW) 3.2-5.6 * Heat (kW) 3.5-7.0

Rated Capacity

* Cool 5.1 kW * Heat 6.0 kW
