Daikin 5.8Kw Under Ceiling Suspended Air Conditioner Reverse Cycle Inverter
Indoor Unit FHQ71BWV1A Outdoor Unit RZQS71AV1
(Sky Air) The Sky Air series is the ideal solution for retail and light commercial applications.
5.8Kw Under Ceiling Suspended Air Conditioner Reverse Cycle Inverter

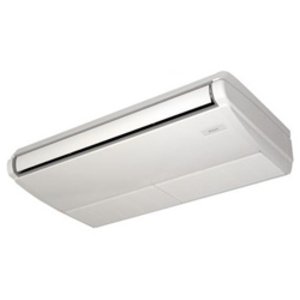

Daikin's Sky Air is available in 4 types with a range of capacities to suit a variety of commercial applications. Daikin's Sky Air ceiling suspended indoor unit can keep cool even the largest of spaces without compromising wall space.
Installation flexibility for freedom of design
- Flexible installation. The unit fits more snugly into tight spaces.
- Drain pump kit can be easily incorporated. Drain pipe connection can be done inside the unit. refrigerant and drain pipe outlets are at the same opening.
- All wiring and internal servicing can be done from under the unit
- Pipes more easily rigged
- Low gas pressure detection
- Auto swing (up and down) and louvers (left and right by hand) bring comfort to the room
- Louver manually adjusts for straight or wide angle airflow
- Installable on ceilings 3.5 m high
- Two selectable temperature-sensors. Both indoor unit and wired remote controller contain temperature- sensors. Temperature sensing can be set at the unit or, to further improve comfort level, closer to the target area at the wired remote control. This feature requires initial setting by the installer.
- Switchable fan speed: High/Low
- Programme "Dry". Dehumidification is a microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature.
- Non-flocking flap. Condensation does not easily form on and dirt does not cling to non-flocking flap. It is easy to clean.
- Easy-clean, flat surfaces
Oil resistant grille
- Oil-resistant plastic is used for the air suction grille. This satisfies durability in restaurants and other similar environments.
- Power Supply
- 1 Phase, 220-240 V, 50 Hz
- Refrigerant Type
- Weight - Outdoor (kg)
- Outdoor Dimensions - H X W X D (mm)
- 990 X 940 X 320
- Weight - Indoor (kg)
- Indoor Dimensions - H X W X D (mm)
- 195 X 1160 X 680
- Indoor Airflow Rate (H/M/L) - L/s
- 283 / - / 233
- Heating Capacity Range - Min ~ Max (kW)
- 3.5 ~ 9.0
- Cooling Capacity Range - Min ~ Max (kW)
- 3.2 ~ 8.0
- Outdoor Unit
- Indoor Unit
