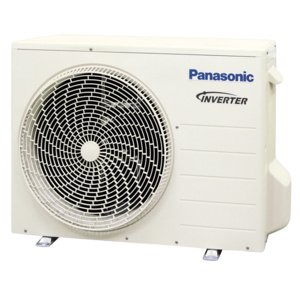

Panasonic 3.4kW Outdoor Unit Reverse Cycle Inverter (Bulkhead Ducted)
CU-E12QD3R
The 3.4kW outdoor unit that pairs with the CS-E12QD3RW Bulkhead Ducted system.
3.4kW Outdoor Unit Reverse Cycle Inverter (Bulkhead Ducted)
In the quiet mode during cooling operation with low fan speed, this outdoor system is whisper quiet at only 25dB.
Specification
- Operating Range (Outdoor)
- *Cooling 5~46C, *Heating -15~24C
- Additional Gas Amount
- 20g/m
- Pipe Length For Additional Gas
- 7.5
- Pipe Length
- Min 3m, Max 15m
- Power Supply
- Outdoor
- Refrigerant Pipe Diameter
- 6.35mm Liquid Side, 12.70mm Gas Side
- Net Weight
- 17kg Indoor, 33kg Outdoor
- Dimensions (H X W X D)
- 235 x 750 x 370 mm (619 x 824 x 299 mm)
- Sound Power Level DB
- *Cooling 64/- (Outside Hi/S-Lo), *Heating 65/- (Outside Hi/S-Lo)
- Sound Pressure Level DB (A)
- *Cooling 33/27/24 (Inside Hi/Lo/S-Lo), 49/- (Outside Hi/S-Lo), *Heating 35/28/25 (Inside Hi/Lo/S-Lo), 50/- (Outside Hi/S-Lo)
- Airflow
- *Cooling 131L/s, *Heating 148L/s
- Electrical Data
- *Cooling 240V, 4.1A, 0.95kW(0.23-1.18), *Heating 240V, 5.1A, 1.18kW(0.22-1.6)
- EER/COP
- *Cooling 12.21Btu/hW, 3.58W/W, *Heating 11.53Btu/hW, 3.39W/W
- Cooling/Heating Capacity
- *Cooling 3.4kW(0.85~4.00), 11,600Btu/h(2,900~13,600), *Heating 4.0kW(0.85~5.10), 13,600Btu/h(2,900~17,400)
