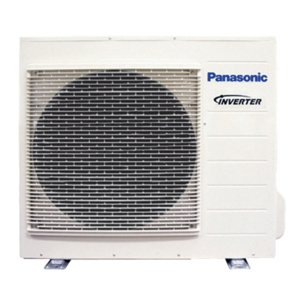

Panasonic 5.0kW Outdoor Unit Reverse Cycle (Bulkhead Ducted)
CU-E18QD3R
The 5.0kW outdoor unit that pairs with the CS-E18QD3RW Bulkhead Ducted system.
5.0kW Outdoor Unit Reverse Cycle (Bulkhead Ducted)
In the quiet mode during cooling operation with low fan speed, this outdoor system is whisper quiet at only 25dB.
Specification
- Operating Range (Outdoor)
- *Cooling 5~46C, *Heating -15~24C
- Additional Gas Amount
- 20g/m
- Pipe Length For Additional Gas
- 10
- Pipe Length
- Min 3m, Max 30m
- Power Supply
- Outdoor
- Refrigerant Pipe Diameter
- 6.35mm Liquid Side, 12.70mm Gas Side
- Net Weight
- 18kg Indoor, 52kg Outdoor
- Dimensions (H X W X D)
- 285 x 750 x 370 mm (795 x 875 x 320 mm)
- Sound Power Level DB
- *Cooling 62/57 (Outside Hi/S-Lo), *Heating 63/58 (Outside Hi/S-Lo)
- Sound Pressure Level DB (A)
- *Cooling 42/30/27 (Inside Hi/Lo/S-Lo), 48/43 (Outside Hi/S-Lo), *Heating 42/32/29 (Inside Hi/Lo/S-Lo), 49/44 (Outside Hi/S-Lo)
- Airflow
- *Cooling 210L/s, *Heating 225L/s
- Electrical Data
- *Cooling 240V, 6.6A, 1.54kW(0.29-1.84), *Heating 240V, 7.9A, 1.85kW(0.33-2.20)
- EER/COP
- *Cooling 11.10Btu/hW, 3.25W/W, *Heating 11.24Btu/hW, 3.30W/W
- Cooling/Heating Capacity
- *Cooling 5.0kW(0.90~5.70), 17,100Btu/h(3,070~19,400), *Heating 6.1kW(0.90~7.10), 20,800Btu/h(3,070~24,200)
