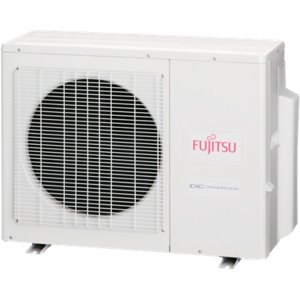

Fujitsu 8.0kW Multi Head Air Conditioner Outdoor Unit Reverse Cycle Inverter (3/4 Room)

Outdoor Unit AOTG30LBTA4 8.0kW Cooling 9.6kW Heating

One outdoor unit can be connected to a wide variety of indoor units, including wall mounted, consoles, cassette and ducted units.

8.0kW Multi Head Air Conditioner Outdoor Unit Reverse Cycle Inverter (3/4 Room)

Each room can be individually controlled, allowing you to set different temperatures in each room, helping save running costs by heating or cooling rooms as required
Energy setting operations allow you to save energy, helping reduce power costs
Can be used in residential and commercial operations.

Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.

Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.

ALL DC
With All DC, electricity loss is decreased and power consumption reduced.

Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.

Specification

Model No. - Indoor
AOTG30LBTA4
Model No. - Outdoor
AOTG30LAT4
Reverse Cycle System
Yes
Cooling Capacity (Watts)
8,000
Cooling Capacity (BTU/h)
27,300
Range (Watts)
3,500-10,100
Range (BTU/h)
11,940-34,500
Heating Capacity (Watts)
9,600
Heating Capacity (BTU/h)
32,800
Range (Watts)
3,700-12,000
Range (BTU/h)
12,620-41,000
Power Supply (Volts)
240
Phase-Frequency (Ph - Hz)
1-50
Power Supply Attachment
Outdoor
Running Current, Cooling (Amps)
9.3
Running Current, Range (Amps)
Max 15.0
Input, Cooling (Watts)
2,220
Input, Range (Watts)
Max 3,560
Running Current, Heating (Amps)
10.1
Running Current, Range (Amps)
Max 15.0
Input, Heating (Watts)
2,400
Input, Range (Watts)
Max 3,580
E.E.R. - Cooling
3.6
C.O.P. - Heating
4
Fan Speed
2
Compressor Type
Twin Rotary
Dimensions - Outside Unit (HxWxD Mm)
830x900x330
Weight - Outside Unit (kg)
68
O.U. Sound Pressure Level (dBA@1mtr)
50
O.U. Sound Power Level (dBA)
64
Refrigerant Type
R410A
Connection Pipe Sizes, Gas (mm)
2 x 9.52, 2 x 12.7
Connection Pipe Sizes, Liquid (mm)
4 x 6.35
Pre Charged Length (Metre)
50
Minimum Pipe Length (Metre)
20
Maximum Pipe Length (Metre)
25
Maximum Pipe Height (Metre)
70
Pipe Connection Methods
Flare
Outdoor Operating Temp, Cooling Degrees C
0 to 46
Outdoor Operating Temp, Heating Degrees C
-10 to 24
