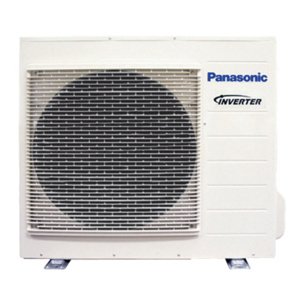

Panasonic 4.8kW Outdoor Unit Reverse Cycle (Mini Cassette)
CU-E18QB4R
The 4.8kW outdoor unit that pairs with the CS-E18QB4RW Mini Cassette system.
4.8kW Outdoor Unit Reverse Cycle (Mini Cassette)
In the quiet mode during cooling operation with low fan speed, this outdoor system is whisper quiet at only 25dB.
Specification
- Star Rating
- *Cooling 1.5, *Heating 2.0
- Sound Pressure Level DB (A)
- *Cooling 38/28/25 (Inside Hi/Lo/S-Lo), 48/43 (Outside Hi/S-Lo), *Heating 39/29/26 (Inside Hi/Lo/S-Lo), 49/44 (Outside Hi/S-Lo)
- Operating Range (Outdoor)
- *Cooling 5~46C, *Heating -15~24C
- Additional Gas Amount
- 20g/m
- Pipe Length For Additional Gas
- 10
- Pipe Length
- Min 3m, Max 30m
- Power Supply
- Outdoor
- Refrigerant Pipe Diameter
- 6.35mm Liquid Side, 12.70mm Gas Side
- Net Weight
- 18kg Indoor, 52kg Outdoor
- Dimensions (H X W X D)
- 260 x 575 x 575 mm (795 x 875 x 320 mm)
- Sound Power Level DB
- *Cooling 62/57 (Outside Hi/S-Lo), *Heating 63/58 (Outside Hi/S-Lo)
- Airflow
- *Cooling 195L/s, *Heating 208L/s
- Electrical Data
- *Cooling 240V, 6.2A, 1.45kW(0.29-1.93), *Heating 240V, 6.5A, 1.51kW(0.33-2.45)
- EER/COP
- *Cooling 11.31Btu/hW, 3.31W/W, *Heating 11.32Btu/hW, 3.31W/W
- Cooling/Heating Capacity
- *Cooling 4.8kW(0.90~5.70), 16,400Btu/h(3,070~19,400), *Heating 5.0kW(0.90~7.10), 17,100Btu/h(3,070~24,200)
