TCL Single Phase

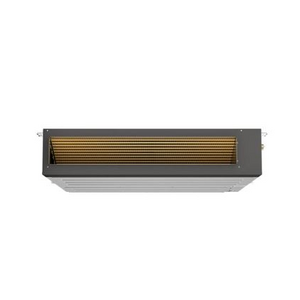

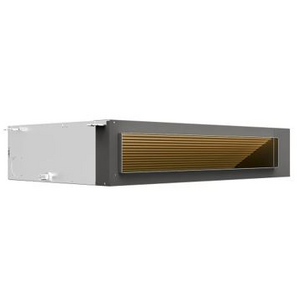

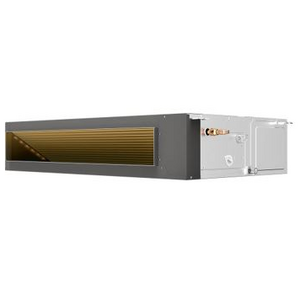

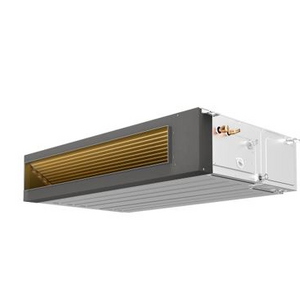

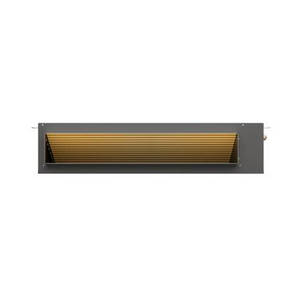

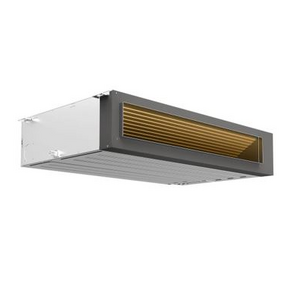

The TCL TCD100D1HWH-DV is a 10.5kW reverse cycle ducted air conditioning system designed for powerful whole-home heating and cooling. Featuring inverter heat pump technology and concealed ceiling installation, it delivers efficient temperature control across multiple rooms while maintaining a clean, unobtrusive look. With 12.5kW heating capacity, R32 refrigerant, and a wired controller with 15m cable included, it is ideal for larger residential homes seeking reliable year-round comfort.

KEY FEATURES
Reverse cycle heating and cooling
10.5kW cooling and 12.5kW heating capacity
Concealed ducted system for whole-home comfort
Inverter heat pump technology for energy efficiency
High static pressure for flexible ducted airflow design
R32 refrigerant for improved efficiency
Wired controller included with 15m cable
Built-in condensate pump for easier installation
Quiet and efficient year-round performance

SPECIFICATIONS
Model: TCD100D1HWH-DV
Indoor Unit: TCD100D1HWH-DVI
Outdoor Unit: TCD100D1HWH-DVO
Type: Reverse cycle heat pump ducted system
Cooling Capacity: 10.5kW
Heating Capacity: 12.5kW
Cooling Range: 4.0kW – 12.8kW
Heating Range: 4.3kW – 15kW
Power Supply: 1 Phase, 220–240V, 50Hz
Control Type: Wired controller with 15m cable
Cooling Efficiency (EER): 4.23
Heating Efficiency (COP): 4.31
Refrigerant: R32
Maximum Pipe Length: Up to 50m
Maximum Height Difference: Up to 30m
Application: Residential whole-home heating and cooling
